Connector End View And Terminal Description

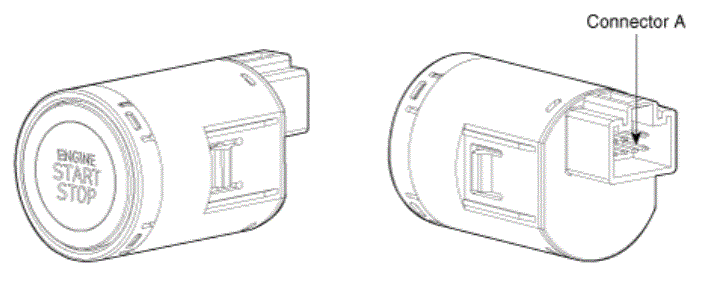

G14764953Courtesy of HYUNDAI MOTOR AMERICA
Connector A No Description No Description
G14764954Courtesy of HYUNDAI MOTOR AMERICA
 1 SSB switch 1 (OUT) 6 Ground
2 - 7 SSB switch 2
3 SSB illumination (+) 8 SSB illumination (-)
4 Immobilizer power 9 -
5 - 10 Immobilizer power
