Removal And Installation: Removal

  1. Disconnect the negative (-) battery terminal.

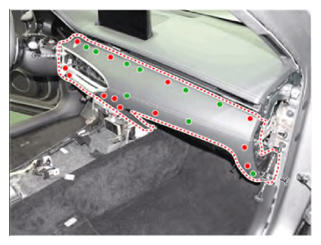

  2. Remove the crash pad garnish [RH].

    (Refer to Body - "CRASH PAD GARNISH ")

    G14764955Courtesy of HYUNDAI MOTOR AMERICA

    Information

    G14764956Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the AVN keyboard assembly connector (A).
    G14764957Courtesy of HYUNDAI MOTOR AMERICA

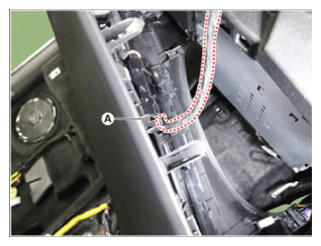

  4. Disconnect the mood lamp connector (A).
    G14764958Courtesy of HYUNDAI MOTOR AMERICA

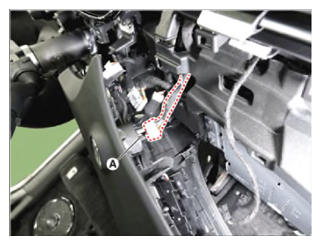

  5. Disconnect the Start/Stop button connector (A)
    G14764959Courtesy of HYUNDAI MOTOR AMERICA

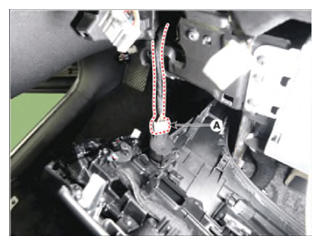

  6. Disconnect the Interior temperature sensor connector (A)
    G14764960Courtesy of HYUNDAI MOTOR AMERICA

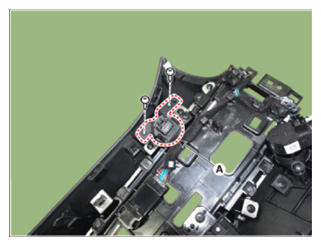

  7. Remove the Start/Stop button (A) after loosening mounting screws.
    G14764961Courtesy of HYUNDAI MOTOR AMERICA
