Engine Control System - 2.5L: Injector: Installation: Notes
- Install in the reverse order of removal.NOTE:

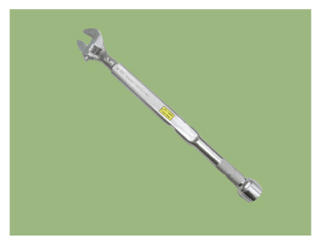

- When tightening the high pressure fuel pipe flange nut, use a torque wrench.
- Do not reuse the used high pressure fuel pipe.
- Careful not to deform the high pressure fuel pipe shape.
- Do not tilt the torque wrench when tightening the nut.
- Observe the work order and tightening torque when assembling.
- After assembly of the high pressure fuel pipe, check for leaks.
- When installing the high pressure fuel pipe, use a SST (09314-L1100).
- Refer to the following when reusing the injector
- When tightening the high pressure fuel pipe flange nut, use a torque wrench.
