Engine Control System - 2.5L: Injector: Replacement
NOTE:
- Be sure to replace the combustion seal installed on the GDI injector following the below procedure to prevent possible leakage.
- Remove the combustion seal (A).NOTE:
- When removing the injector, be careful not to damage the injector.
- When removing the Combustion seal, use a nipper to cut it.
- Before the assembly of the combustion seal the groove must be cleaned using a clean cloth.
- Reinstall the combustion seal using the SST (09353-L1100).

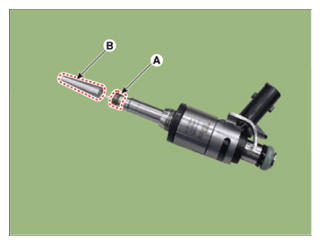

- Place the combustion seal installing guide (A) on the tip of the injector not to damage the injector tip (B).

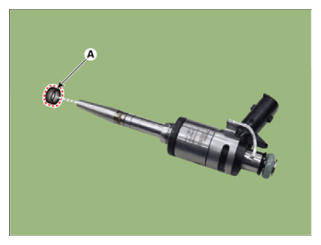

- Install the combustion seal (A) to the seal mounting guide.

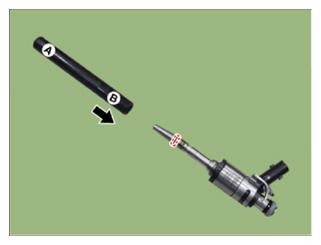

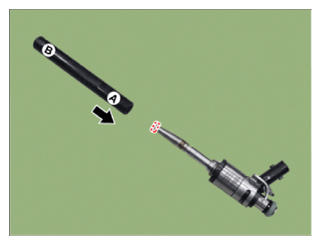

- Input the seal to A direction of the installer, and push it to B direction until it reaches the combustion seal installation area.NOTE:
- The complete assembly must not take longer than 2 to 3 seconds.

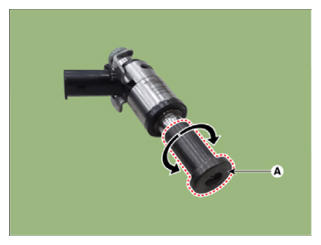

- Install the compressor (A) and disconnect it after rotating 3-4 times to left and right direction.

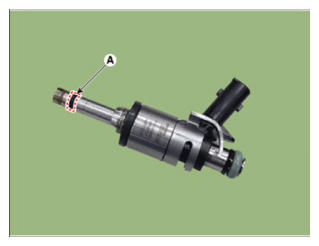

- Check the combustion seal (A) installation.
- Place the combustion seal installing guide (A) on the tip of the injector not to damage the injector tip (B).
