Creation Condition and Calibration method

  1. In case of replacing the transfer case only.
    • Perform the "clutch learning reset" procedure.

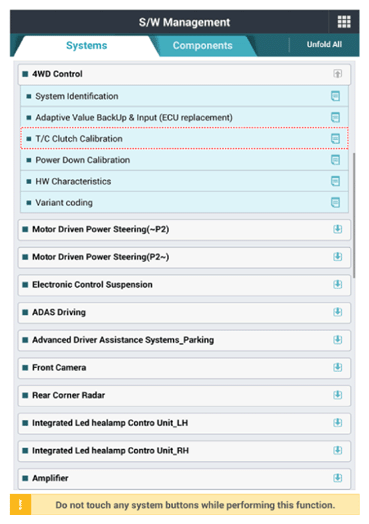

G14764347Courtesy of HYUNDAI MOTOR AMERICA

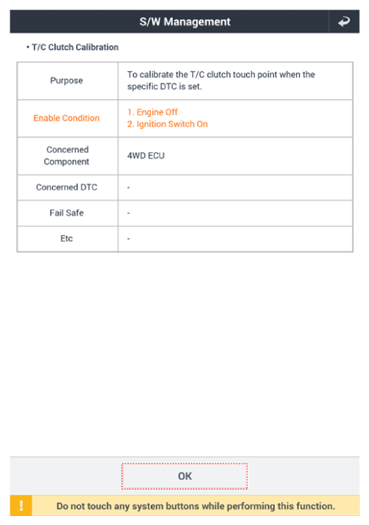

G14764348Courtesy of HYUNDAI MOTOR AMERICA

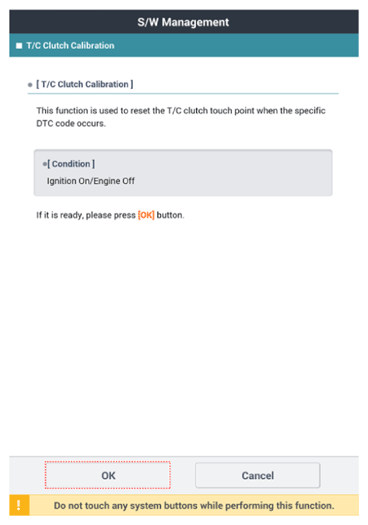

G14764349Courtesy of HYUNDAI MOTOR AMERICA

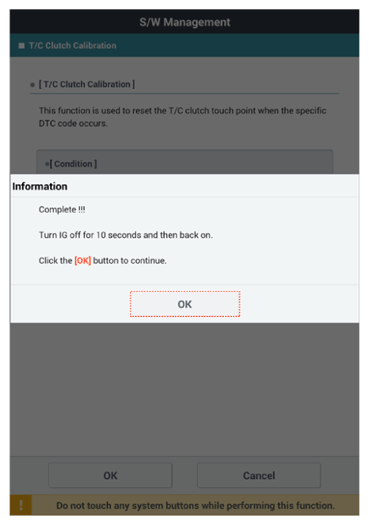

G14764350Courtesy of HYUNDAI MOTOR AMERICA
