Power Window Sub Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the Front/Rear door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

    (Refer to Body - "REAR DOOR TRIM ")

  3. Disconnect the power window switch connector (A).
    G14764711Courtesy of HYUNDAI MOTOR AMERICA

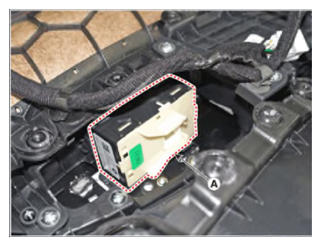

  4. Disengage the mounting clip and then remove the power window switch assembly (A).
    G14764712Courtesy of HYUNDAI MOTOR AMERICA
