Creation condition and Calibration method

  1. In case of replacing the ECU only
    • Perform the "ECU Date Back-up & Writing" procedure.

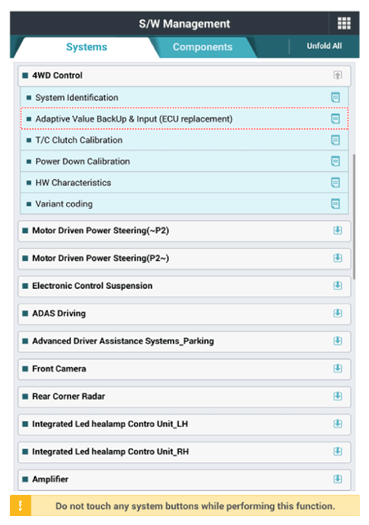

G14764363Courtesy of HYUNDAI MOTOR AMERICA

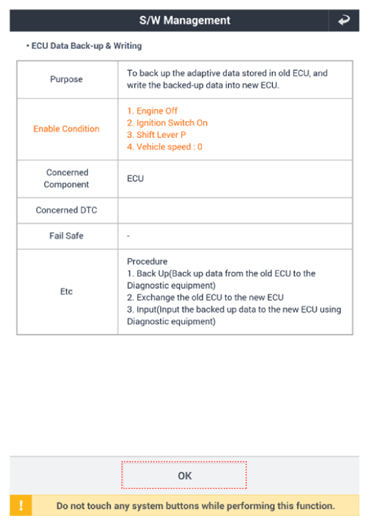

G14764364Courtesy of HYUNDAI MOTOR AMERICA

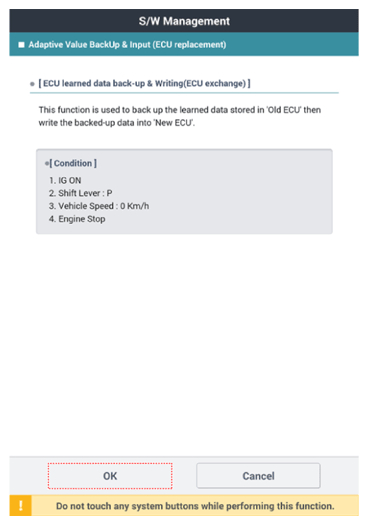

G14764365Courtesy of HYUNDAI MOTOR AMERICA

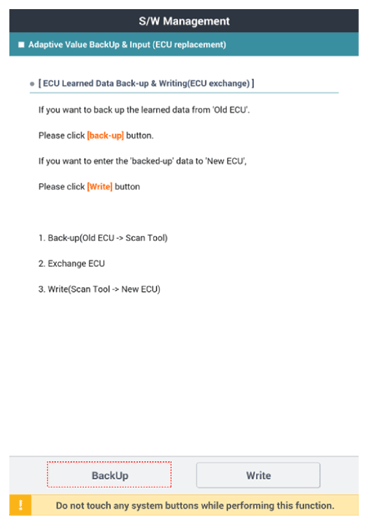

G14764366Courtesy of HYUNDAI MOTOR AMERICA

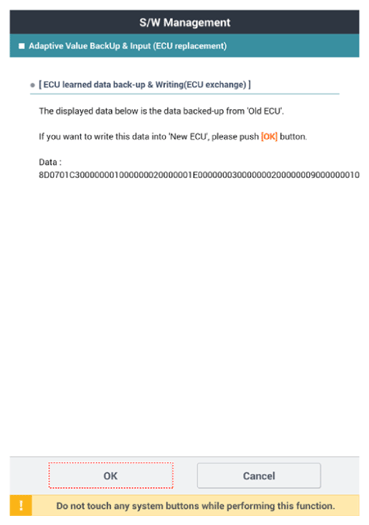

G14764367Courtesy of HYUNDAI MOTOR AMERICA

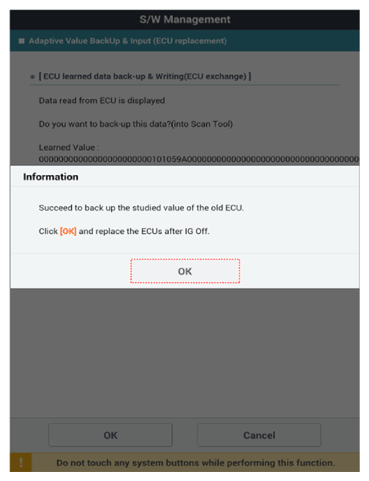

G14764368Courtesy of HYUNDAI MOTOR AMERICA

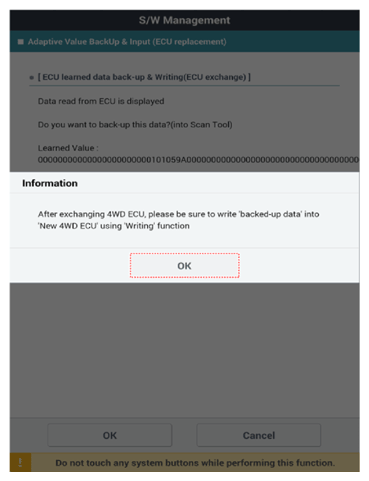

G14764369Courtesy of HYUNDAI MOTOR AMERICA

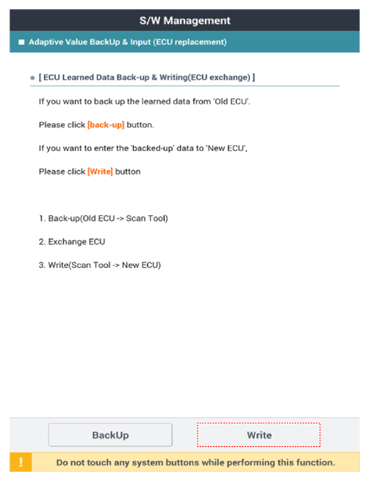

G14764370Courtesy of HYUNDAI MOTOR AMERICA

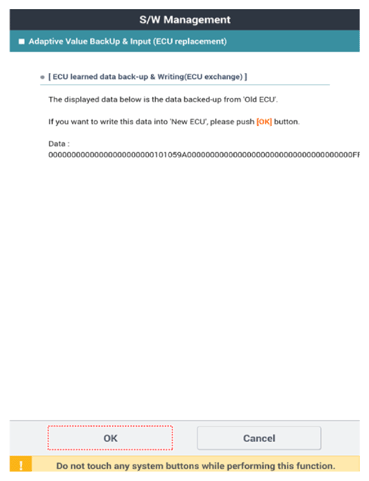

G14764371Courtesy of HYUNDAI MOTOR AMERICA

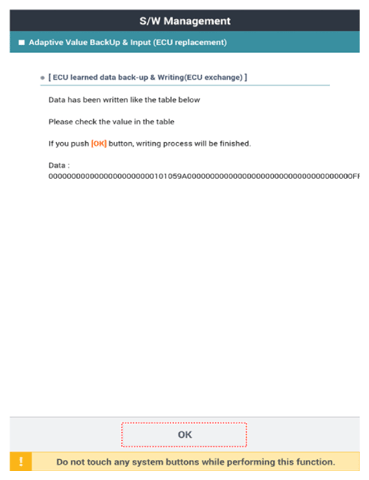

G14764372Courtesy of HYUNDAI MOTOR AMERICA
