Components Location

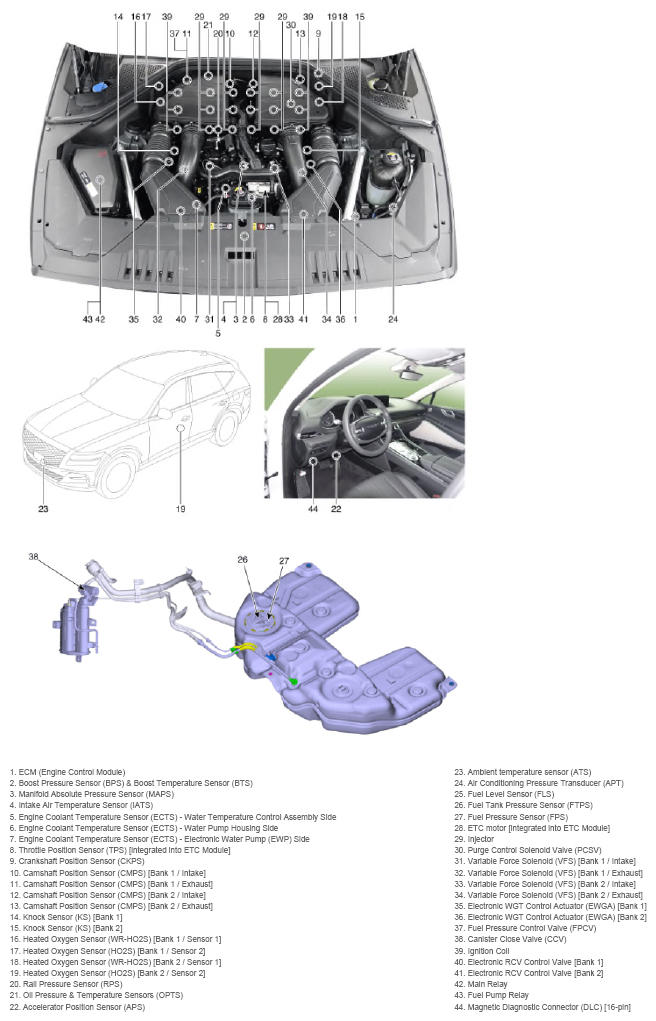

G14728621Courtesy of HYUNDAI MOTOR AMERICA

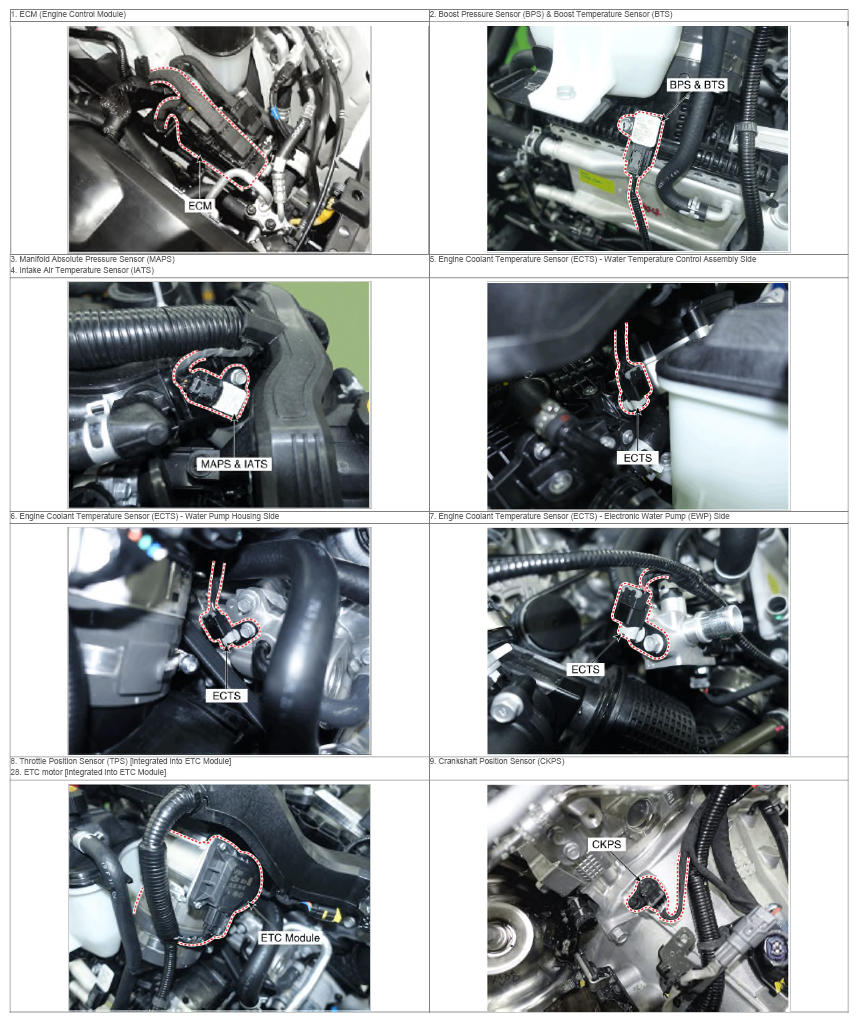

G14728622Courtesy of HYUNDAI MOTOR AMERICA

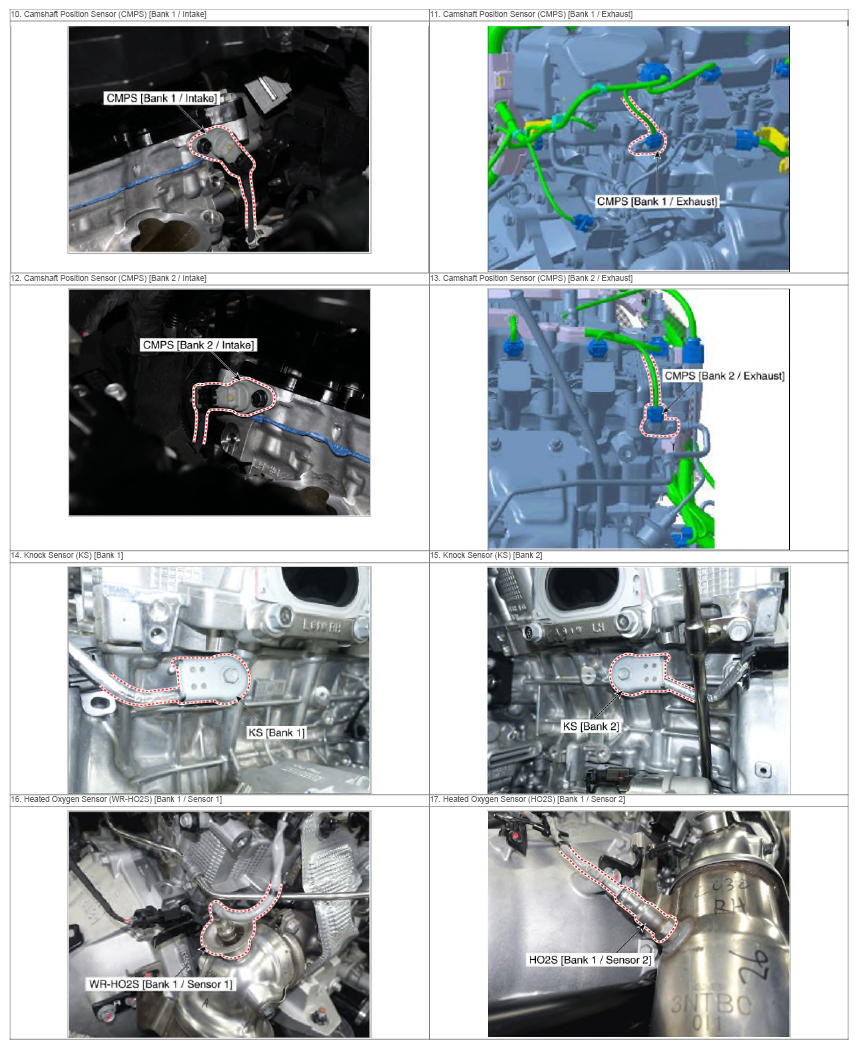

G14728623Courtesy of HYUNDAI MOTOR AMERICA

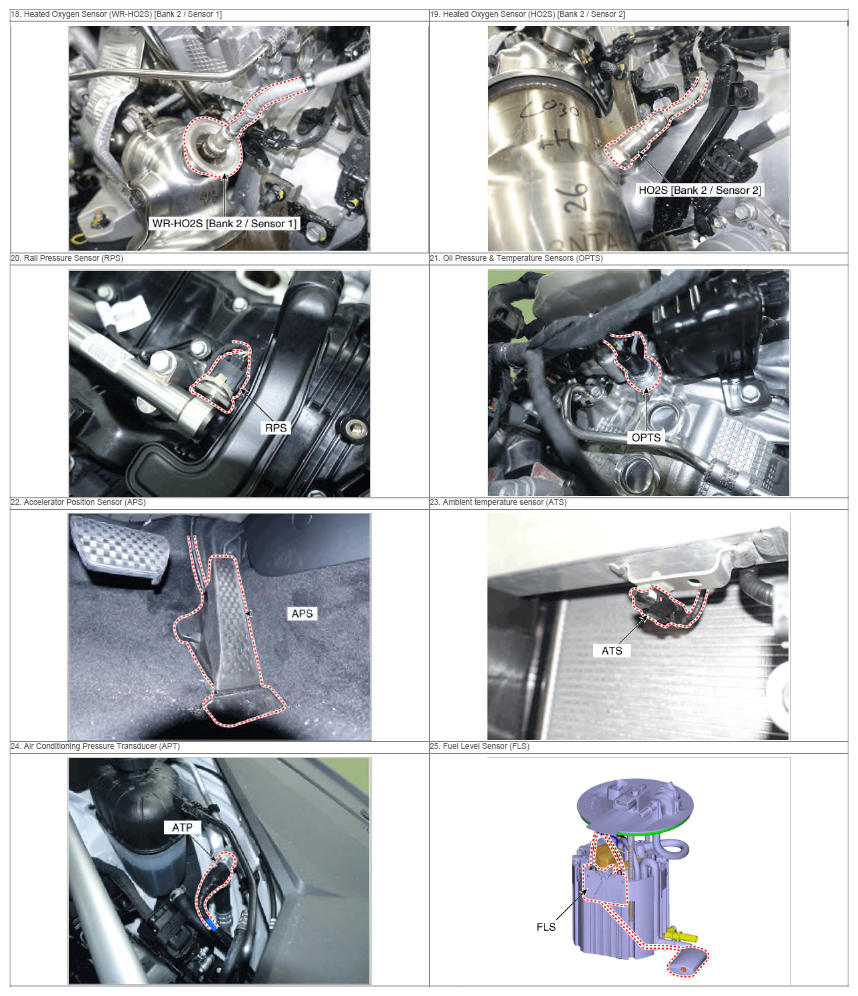

G14728624Courtesy of HYUNDAI MOTOR AMERICA

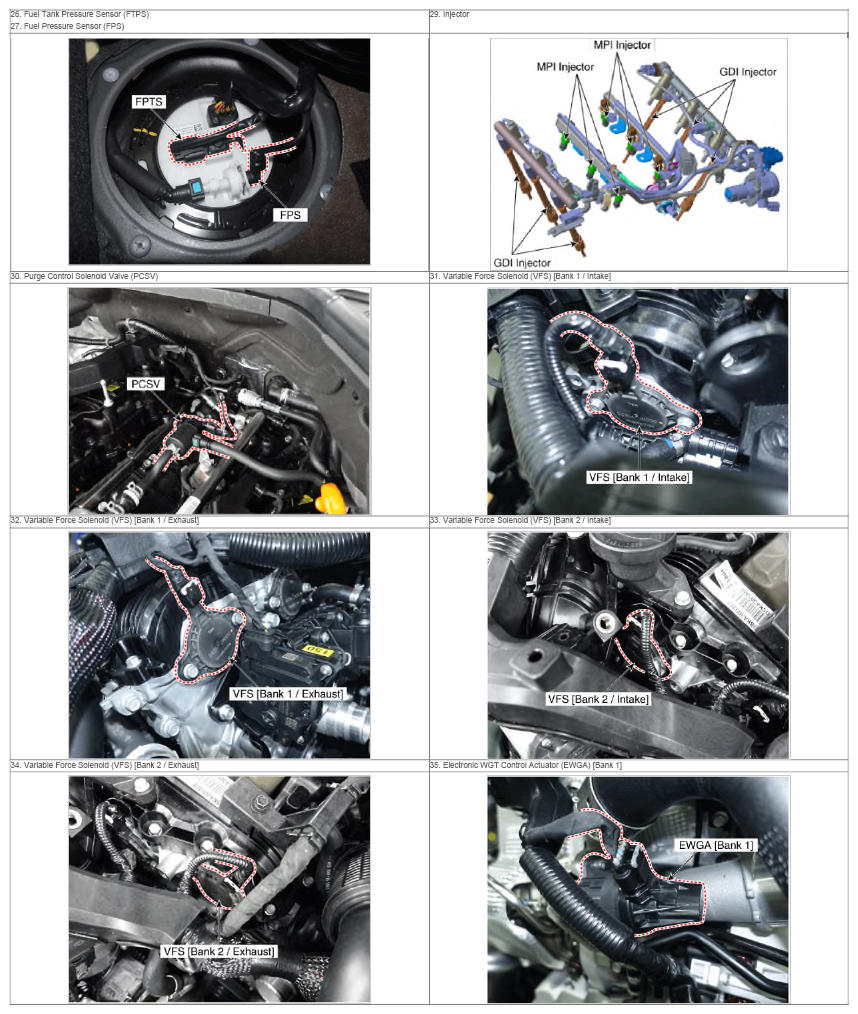

G14728625Courtesy of HYUNDAI MOTOR AMERICA

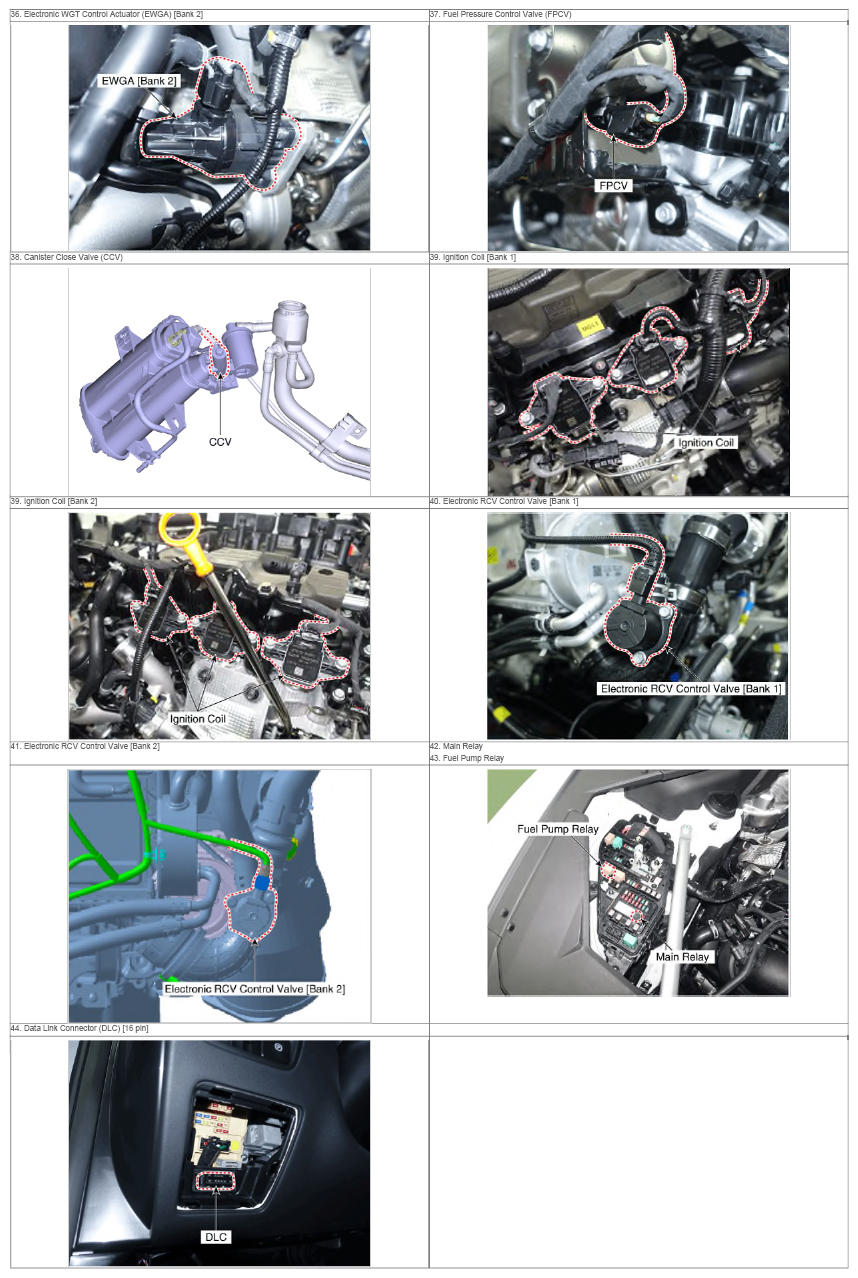

G14728626Courtesy of HYUNDAI MOTOR AMERICA
