Charging System: Alternator

13.5 V 150 A

Item Specification
Form AC power generation
Rated Voltage 13.5 V 150 A
Motor RPM 1000 - 18000 RPM
Regulator voltage 14.2 - 14.8
Connector pin count 1 (LIN)
Pulley Type OAP

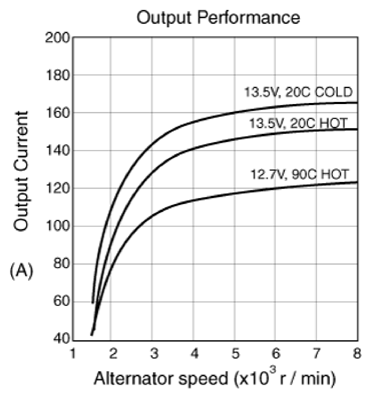

G16829746Courtesy of HYUNDAI MOTOR AMERICA
