Components Location

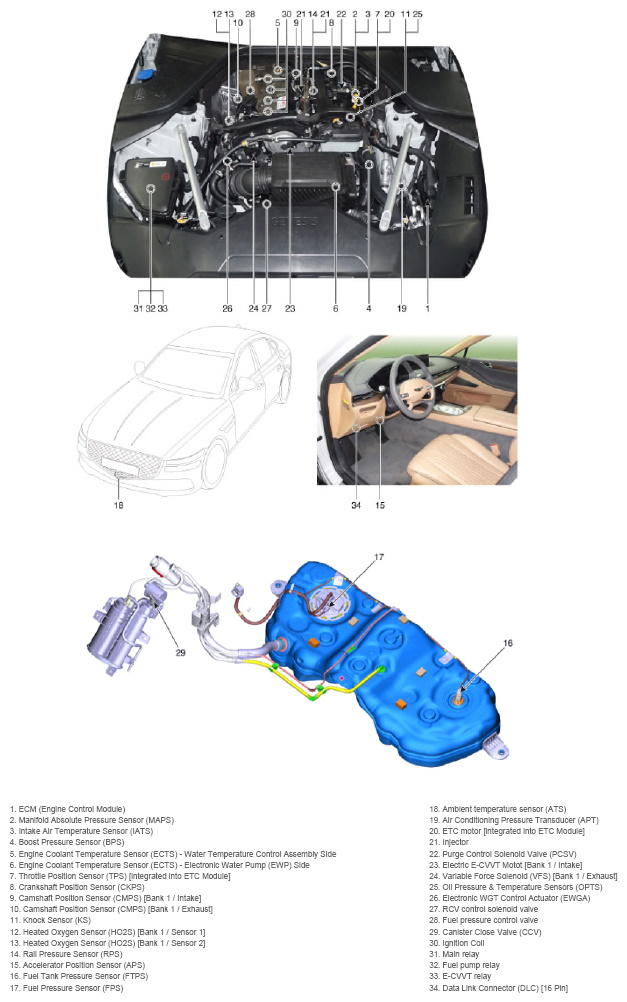

G15547328Courtesy of HYUNDAI MOTOR AMERICA

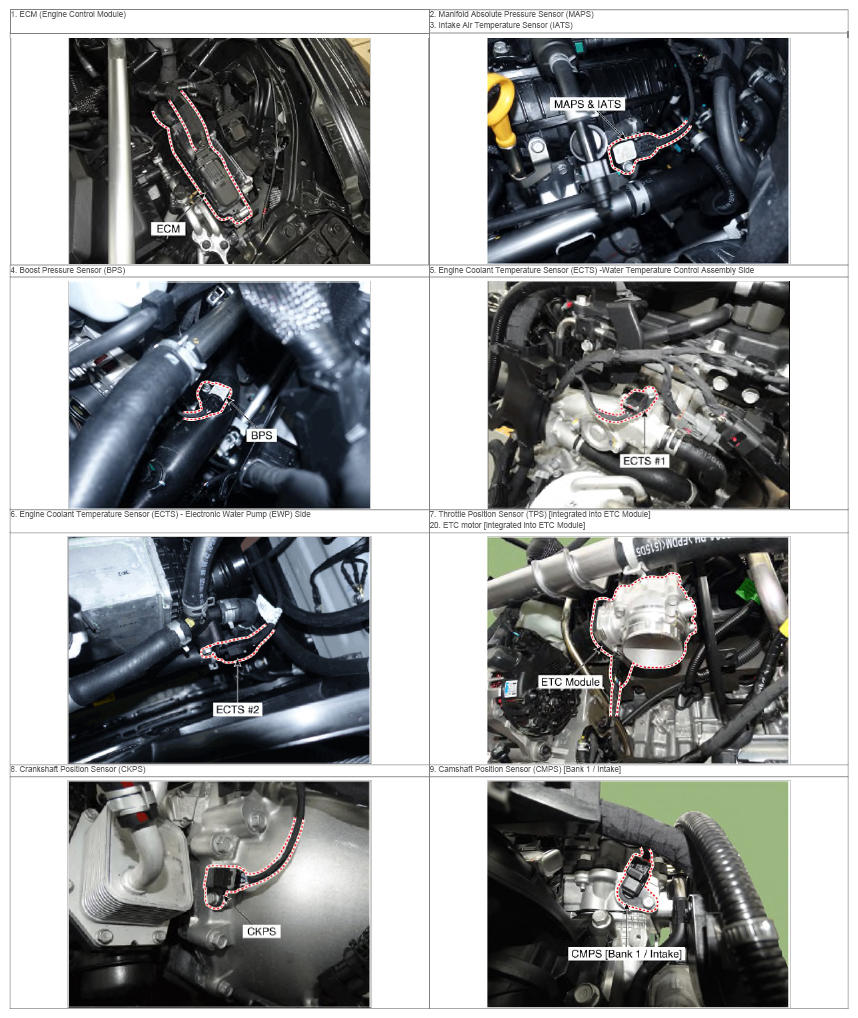

G15547329Courtesy of HYUNDAI MOTOR AMERICA

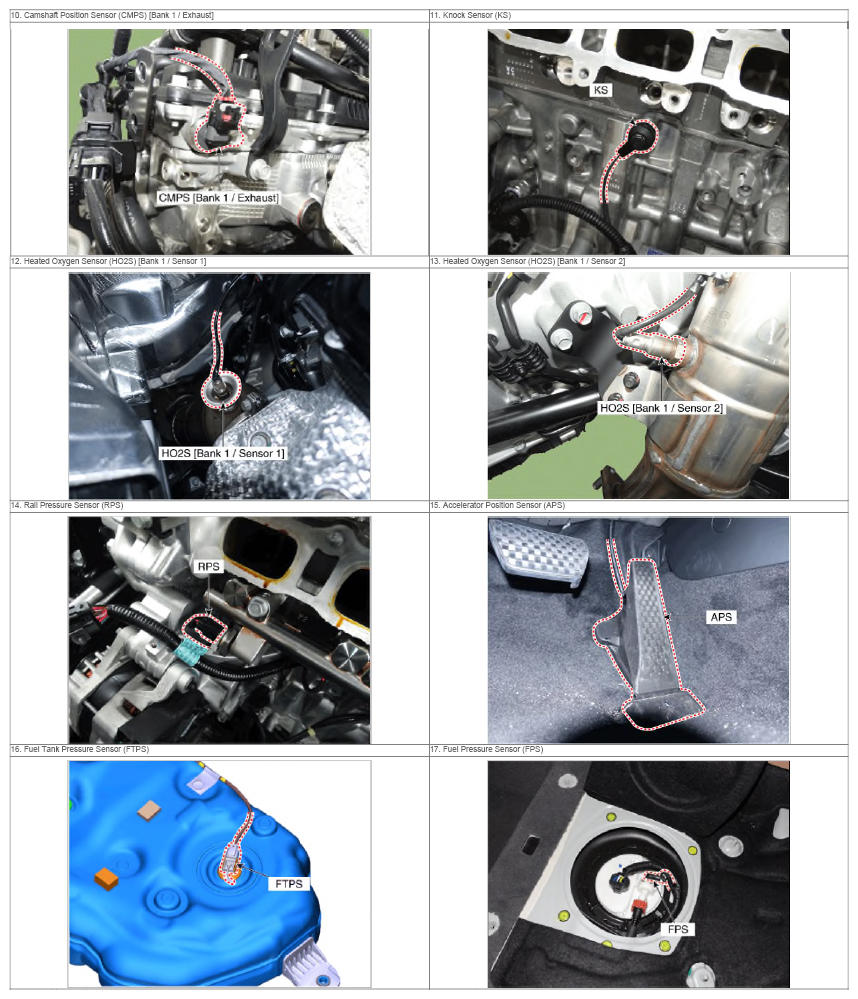

G15547330Courtesy of HYUNDAI MOTOR AMERICA

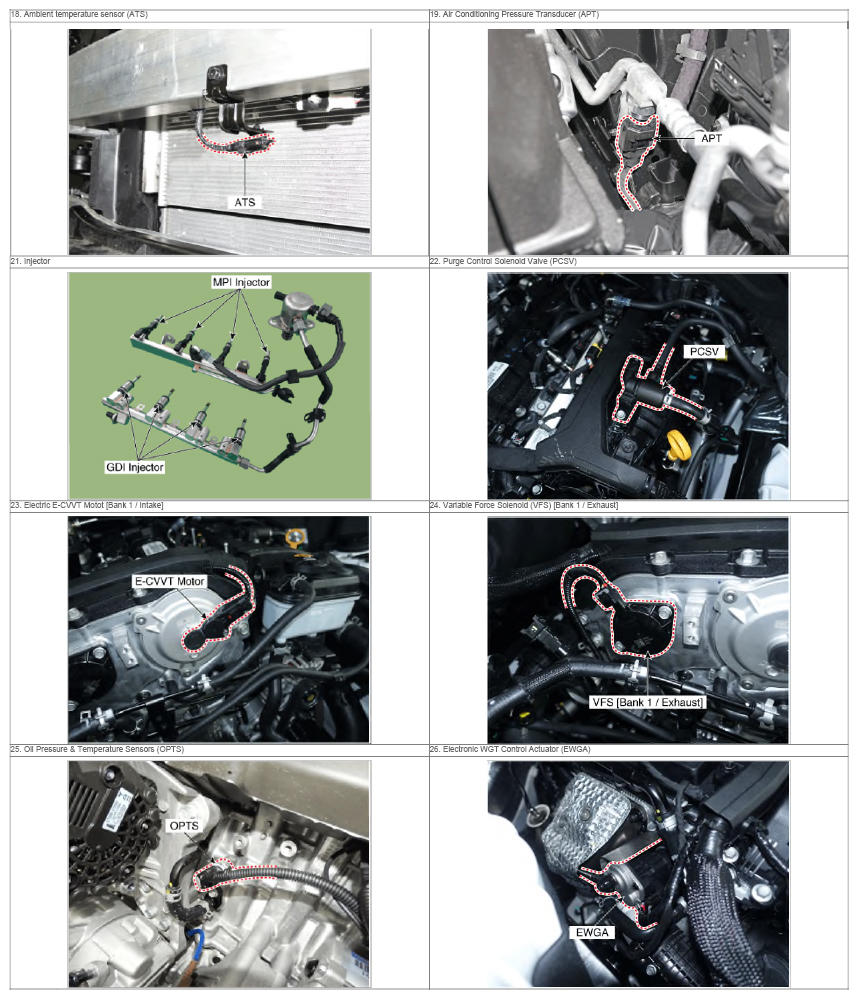

G15547331Courtesy of HYUNDAI MOTOR AMERICA

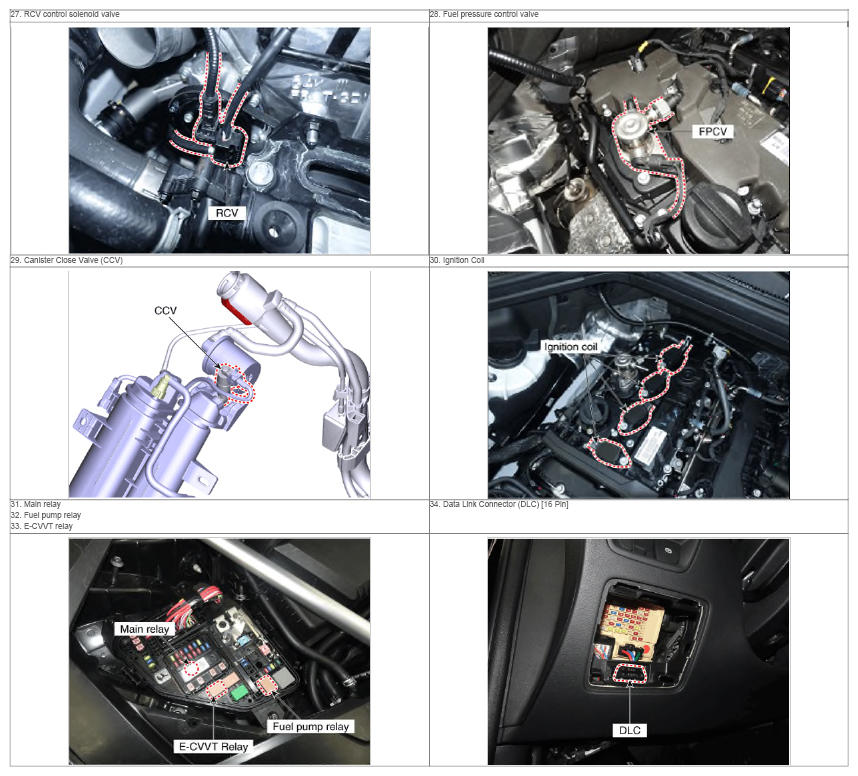

G15547332Courtesy of HYUNDAI MOTOR AMERICA
