Removal And Installation: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the liftgate trim.

    (Refer to Body - "LIFTGATE TRIM ")

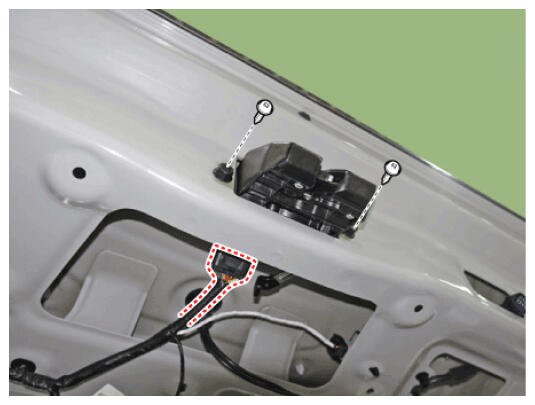

  3. Separate the connector, loosen the mounting screws and then remove the power liftgate latch.
G16856067Courtesy of HYUNDAI MOTOR AMERICA
