Removal And Installation
NOTE:
- Install the component to the specified torques.
- If a part is dropped, replace it with a new one and discard the dropped part as invisible damage may be caused.
- Turn ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the alternator.
(Refer to Engine Electrical System - "ALTERNATOR ")
- Remove the intercooler outlet hose and pipe.
(Refer to Engine Mechanical System - "WATER COOLED INTERCOOLER RADIATOR ")

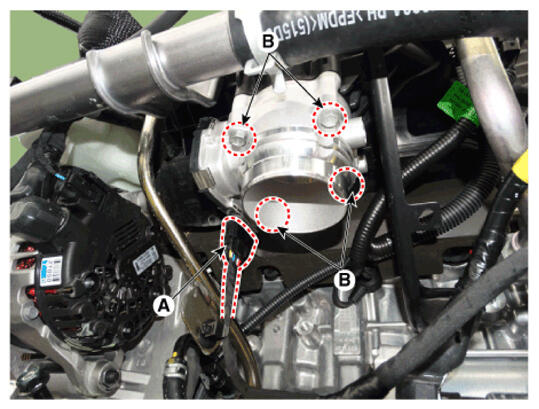

- Disconnect the ETC module connector (A).
- Remove the installation bolt (A), remove the ETC module from the engine.
Tightening torque:
8.8 - 10.8 N.m (0.9 - 1.1 kgf.m, 6.5 - 8.0 lb-ft)
- Install the ETC module in the reverse order of removal.
