Removal And Installation
NOTE:
- Perform load adjustment when exchanging EWGA.
- When installing EWGA, do not reuse the C-ring.
Information
- When DTC P2562/2563/2565 is set, perform the rod adjustment procedure first and check again that the same fault code is detected before replacing the Electric WGT Control Actuator.
- Switch "OFF" the ignition and disconnect the battery negative (-) terminal.
- Remove the Engine Cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
- Remove the Exhaust Heat Protector.
(Refer to Engine Mechanical System - "EXHAUST MANIFOLD ")

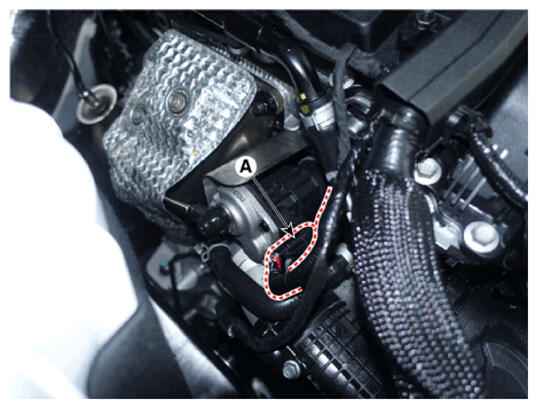

- Disconnect the EWGA connector (A).

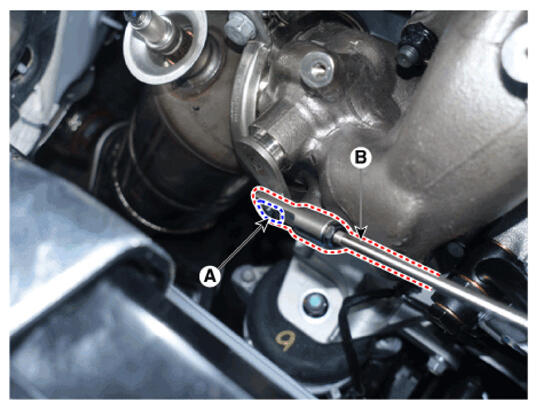

- After removing C-ring (A), remove the shift link assembly (B).
- After remove the installing bolt (A), remove the EWGA.
Tightening torque:
11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb-ft)

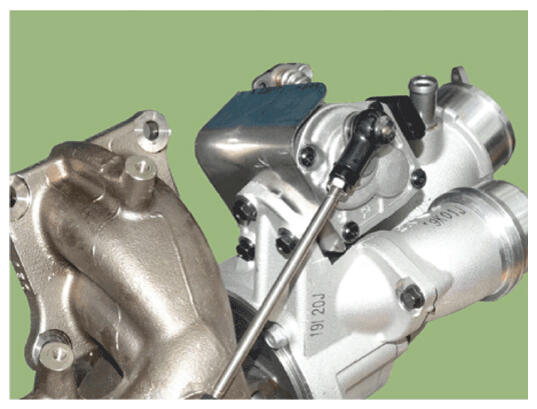

NOTE:- When carrying the turbo charger, do not hold the rod of the turbo charge to prevent bending the rod.
