Removal And Installation
NOTE:
- Install the component to the specified torques.
- If a part is dropped, replace it with a new one and discard the dropped part as invisible damage may be caused.
- Insert the sensor in the installation hole and be careful not to damage it.
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the Engine Cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

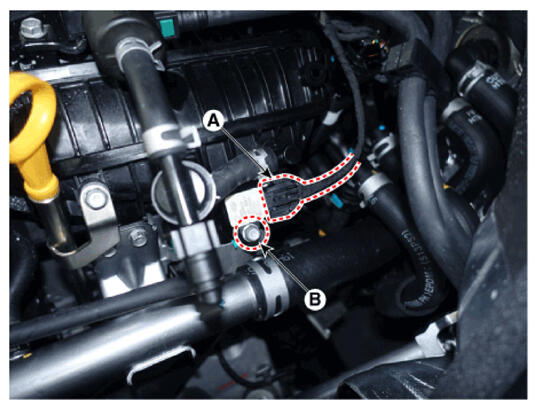

- Disconnect the manifold absolute pressure sensor connector (A).
- Remove the installation bolts (B), and then remove the sensor from the intake manifold.
Tightening torque:
9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)
- Install in the reverse order of removal.
