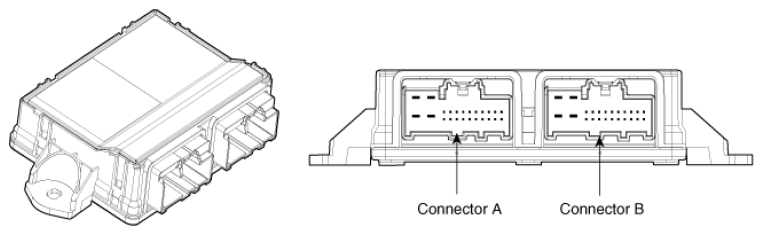

Components And Components Location: Components
| Connector A | |
|---|---|
| No | Description |
| 1 | Spindle motor left (+) |
| 2 | Spindle motor left H |
| 3 | - |
| 4 | GND2 |
| 5 | Hall sensor right power |
| 6 | Hall sensor right 1 |
| 7 | Hall sensor right 2 |
| 8 | Hall sensor right GND |
| 9 | - |
| 10 | Hall sensor left 1 |
| 11 | Hall sensor left 1 |
| 12 | Hall sensor left 2 |
| 13 | Spindle motor right (+) |
| 14 | Spindle motor right (-) |
| 15 | Spindle shelf 1 |
| 16 | Spindle shelf 2 |
| 17 | - |
| 18 | - |
| 19 | - |
| 20 | - |
| 21 | - |
| 22 | - |
| 23 | Hall sensor left GND |
| 24 | Battery (+) |

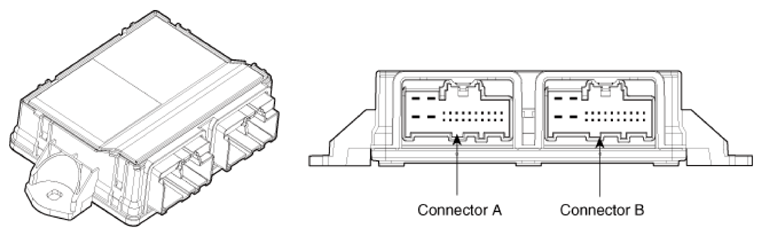

| Connector A | |
|---|---|
| No | Description |
| 1 | GND 1 |
| 2 | PCU motor (-) |
| 3 | HS - CAN (High) |
| 4 | HS - CAN (Low) |
| 5 | - |
| 6 | Anti-pinch strip RH (+) |
| 7 | Anti-pinch Strip LH 1 (+) |
| 8 | Latch Full open Switch |
| 9 | Latch Hair lock Switch |
| 10 | Latch Full lock Switch |
| 11 | - |
| 12 | - |
| 13 | Motor power |
| 14 | PCU motor (+) |
| 15 | GND (PCU home switch) |
| 16 | Tail gate switch (lower crashpad) |
| 17 | Tail gale liner switch |
| 18 | Antipinch strip RH (-) |
| 19 | Buzzer |
| 20 | Tail gate inner switch ILL |
| 21 | Neutral switch (M/T) |
| 22 | PCU home position switch |
| 23 | Antipinch strip LH (-) |
| 24 | Latch switch GDN |
