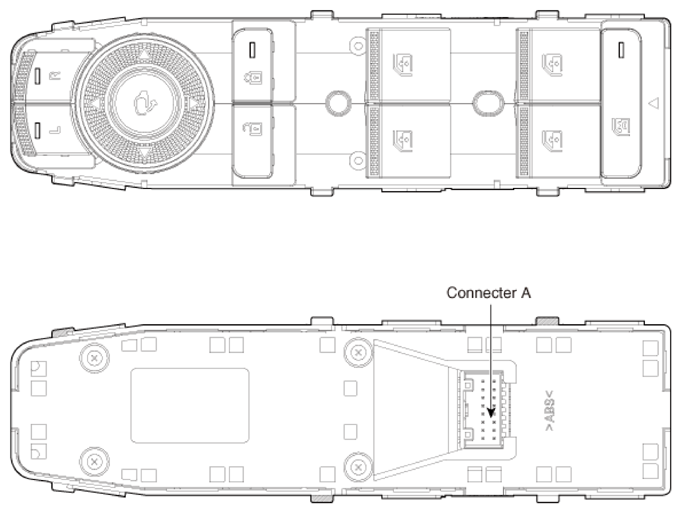

Driver Power Window Switch
| Connector A | DRV Safety | ALL Safety | ||
|---|---|---|---|---|
| Pin | Description | Pin | Description | |
| 1 | B-CAN Low | 1 | B-CAN Low | |
| 2 | B-CAN High | 2 | B*CAN High | |
| 3 | - | 3 | - | |
| 4 | - | 4 | - | |
| 5 | LIN | 5 | - | |
| 6 | Battery (+) | 6 | Battery (+) | |
| 7 | IGN 1 | 7 | IGN 1 | |
| 8 | Drive safely | 3 | Drive safety | |
| 9 | IMS switch | 9 | Mirror COM | |
| 10 | - | 10 | - | |
| 11 | - | 11 | - | |
| 12 | - | 12 | Mirror motor LH (Horizontal) | |
| 13 | - | 13 | Mirror motor LH (Vertical) | |
| 14 | - | 14 | Mirror motor RH (Vertical) | |
| 15 | - | 15 | Mirror motor RH (Horizontal) | |
| 16 | Ground | 16 | Ground | |
