Power Window Main Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

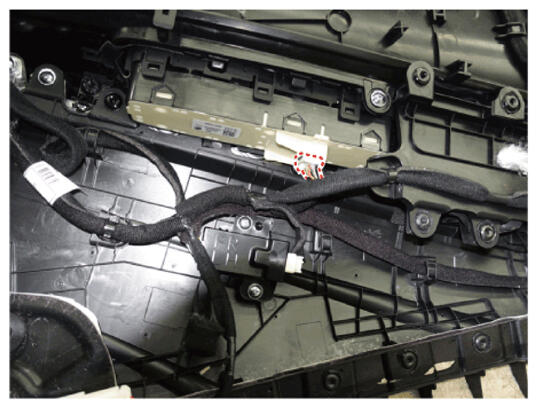

    G16774702Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect door lock switch connector.

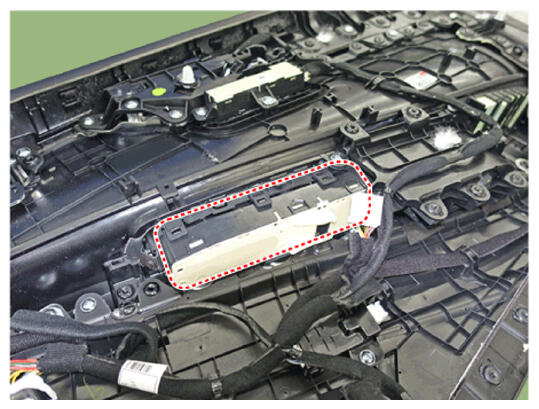

G16774703Courtesy of HYUNDAI MOTOR AMERICA
