Components Location

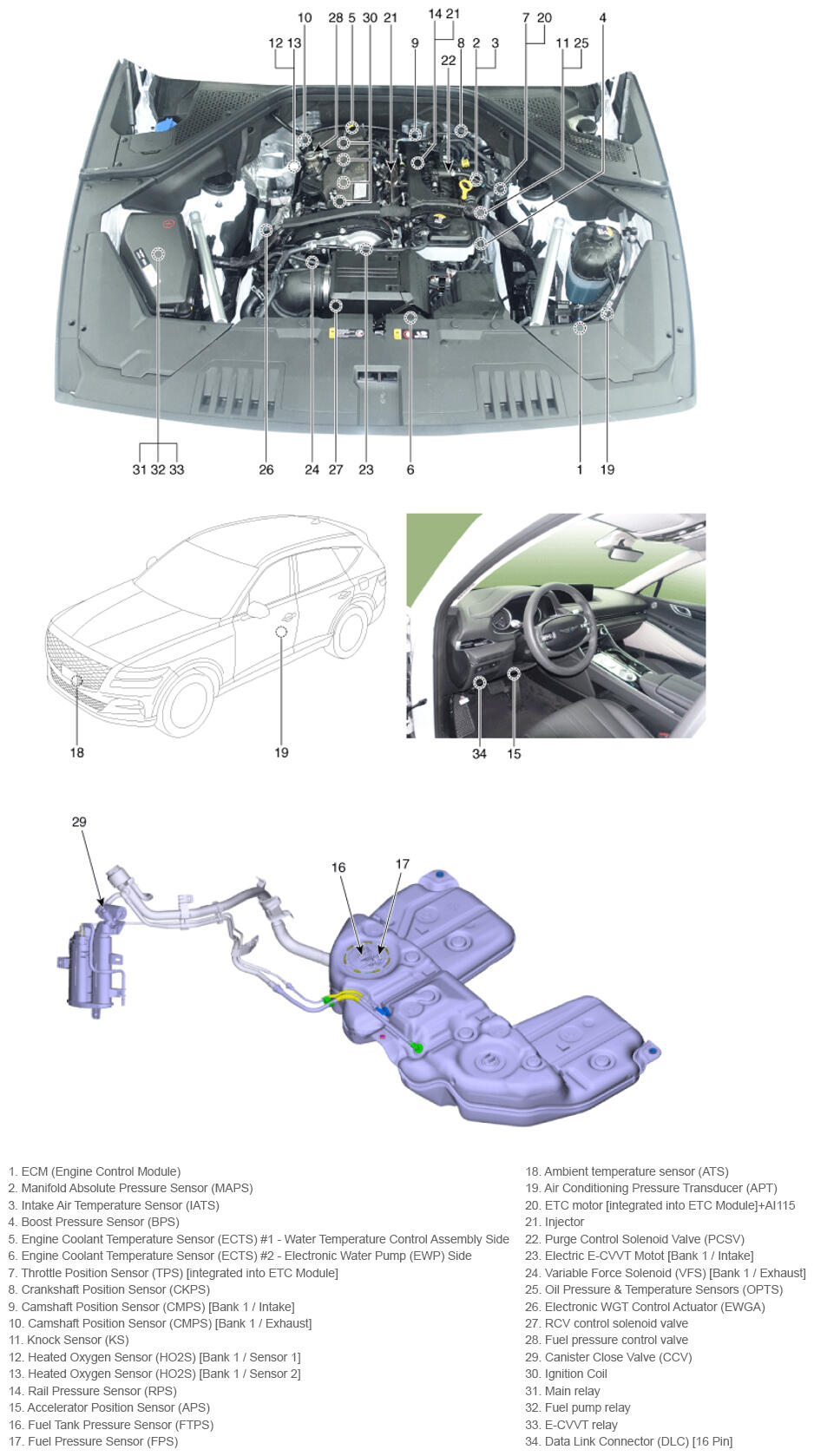

G16769735Courtesy of HYUNDAI MOTOR AMERICA

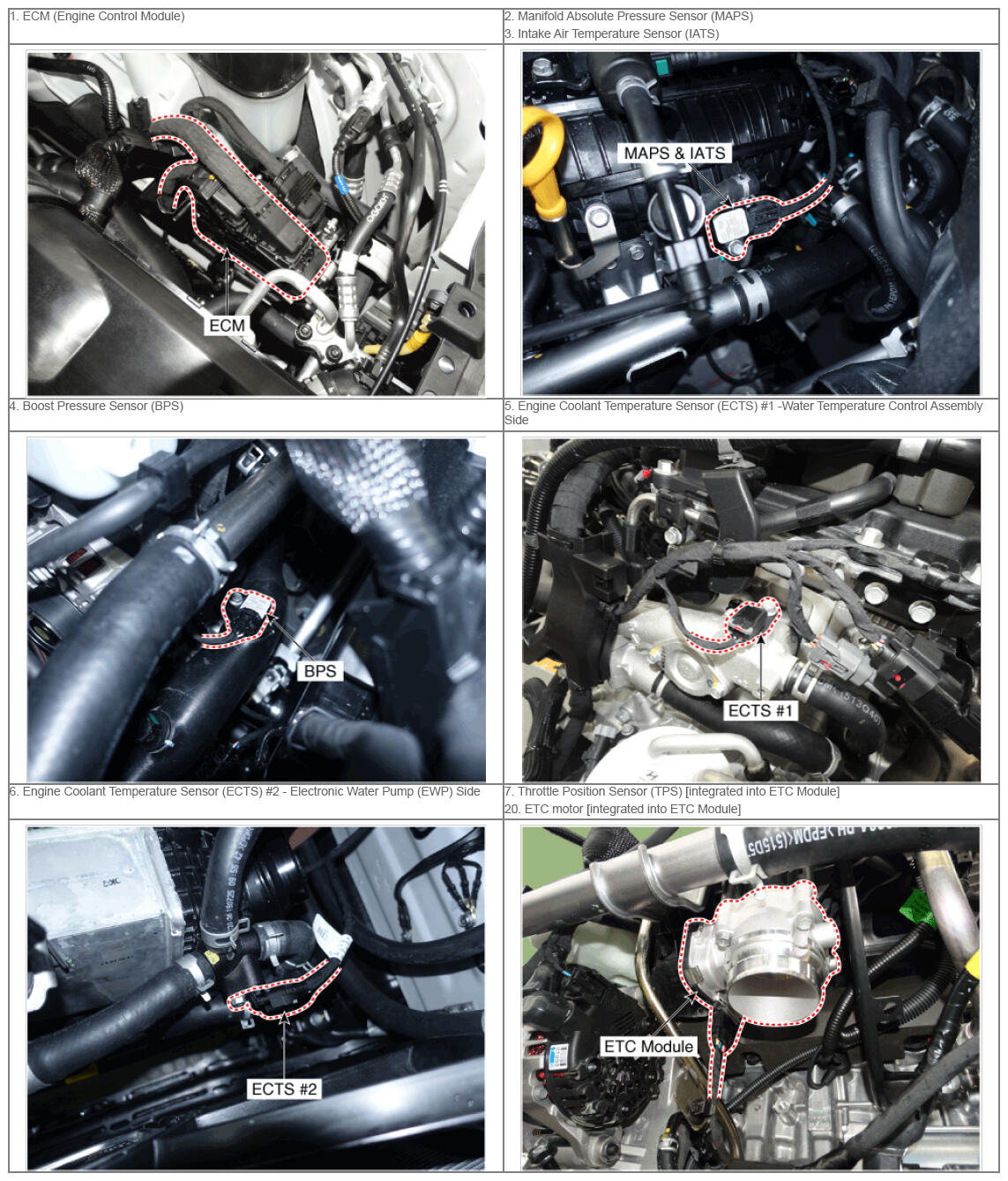

G16769736Courtesy of HYUNDAI MOTOR AMERICA

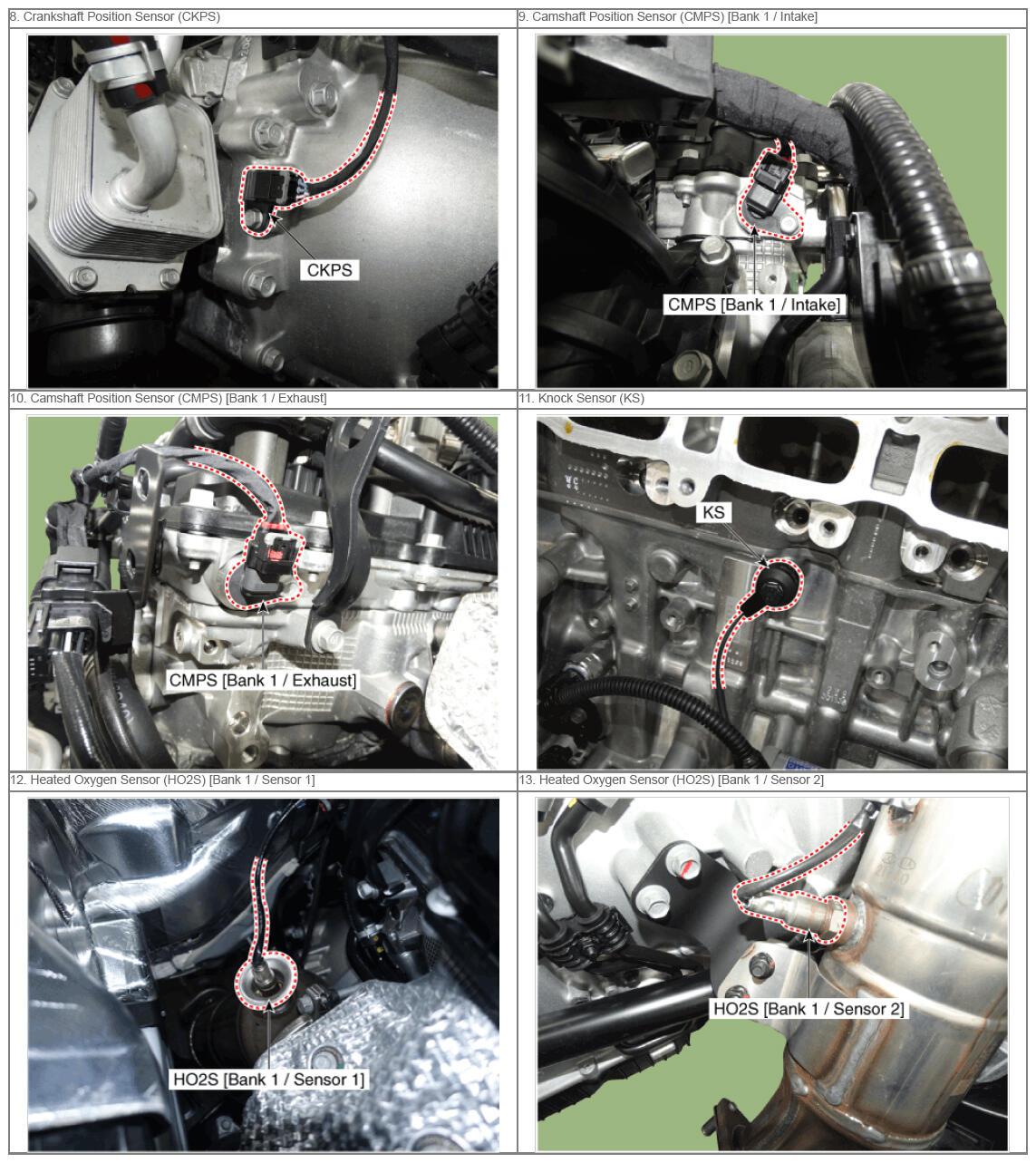

G16769737Courtesy of HYUNDAI MOTOR AMERICA

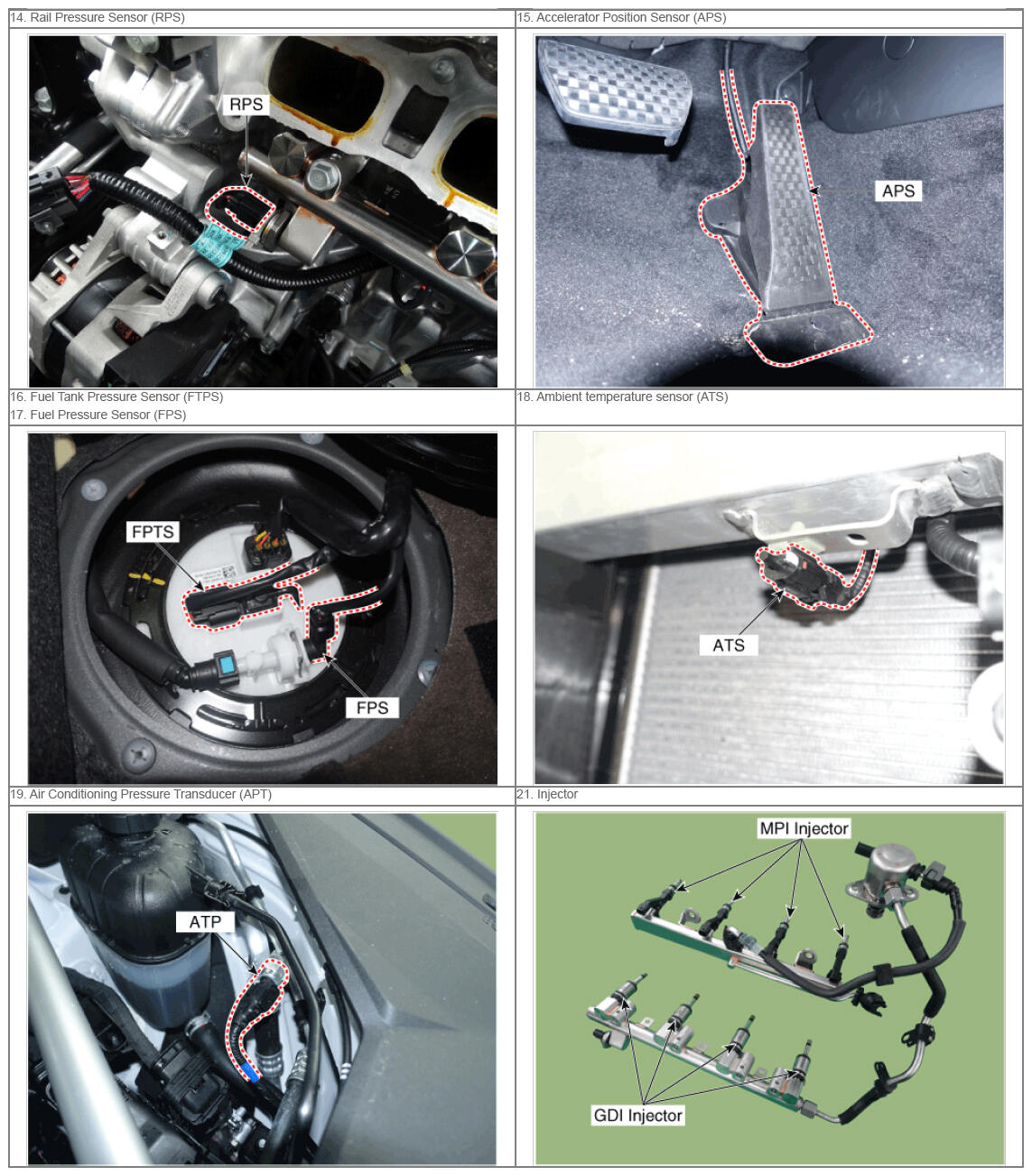

G16769738Courtesy of HYUNDAI MOTOR AMERICA

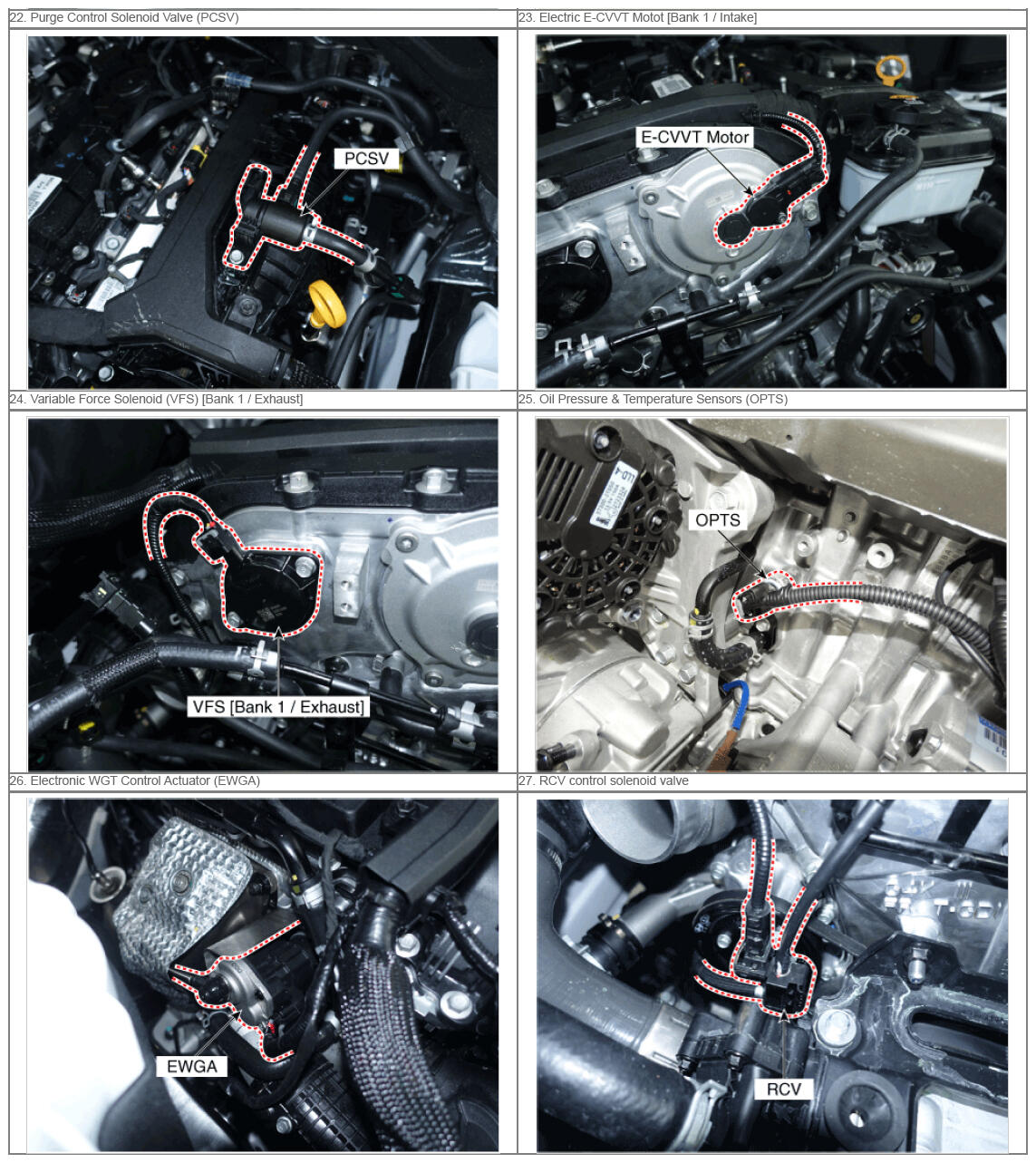

G16769739Courtesy of HYUNDAI MOTOR AMERICA

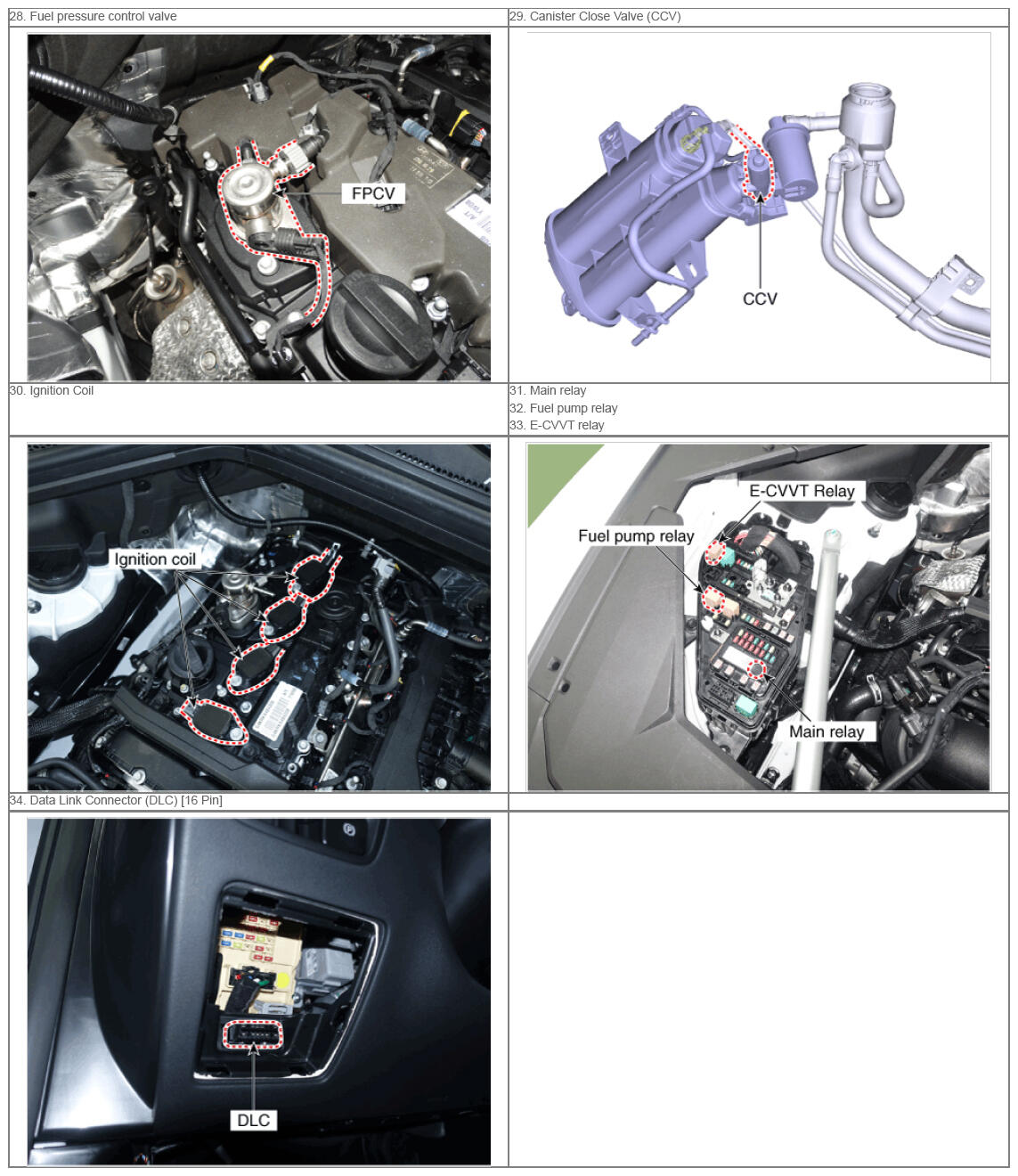

G16769740Courtesy of HYUNDAI MOTOR AMERICA
