Repair Procedures: Installation
- Install in the reverse order of removal.NOTE:

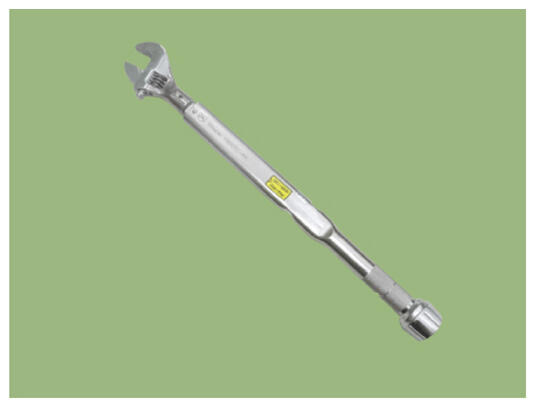

- When tightening the high pressure fuel pipe flange nut, use a torque wrench.
- Do not reuse the used high pressure fuel pipe.
- Careful not to deform the high pressure fuel pipe shape.
- Do not tilt the torque wrench when tightening the nut.
- Observe the work order and tightening torque when assembling.
- After assembly of the high pressure fuel pipe, check for leaks.
- When installing the high pressure fuel pipe, use a SST (09314-L1100).
- Refer to the following when reusing the injector
[GDI Injector]- When removing/reinstalling the injector, clean the cylinder head hole and the appearance.
(Removal of carbon deposits and foreign substances using a brush)

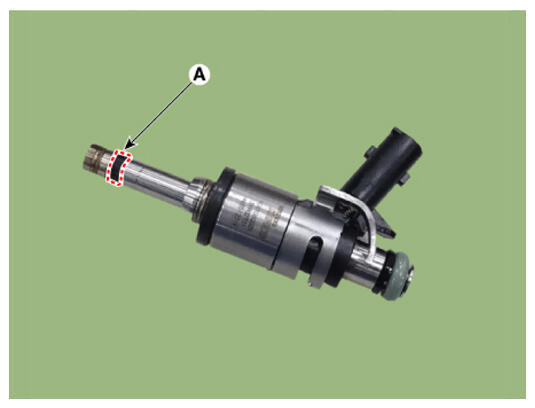

- Be careful not to apply oil/grease/lubricant to the combustion seal (A).
- Do not use the dropped part.
- When inserting the injector, be careful not to damage the injector tip.

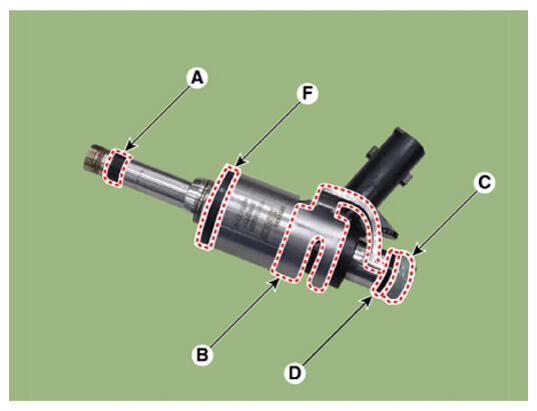

- Do not reuse the combustion seal (A), injector clip (B), O-ring (C), support disk (D), rubber washer (F).
- Be careful not to apply oil to combustion seal.

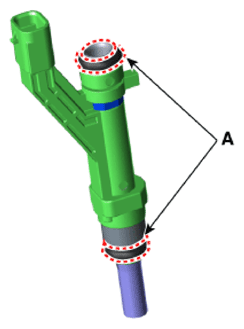

[MPI Injector] - When tightening the high pressure fuel pipe flange nut, use a torque wrench.
