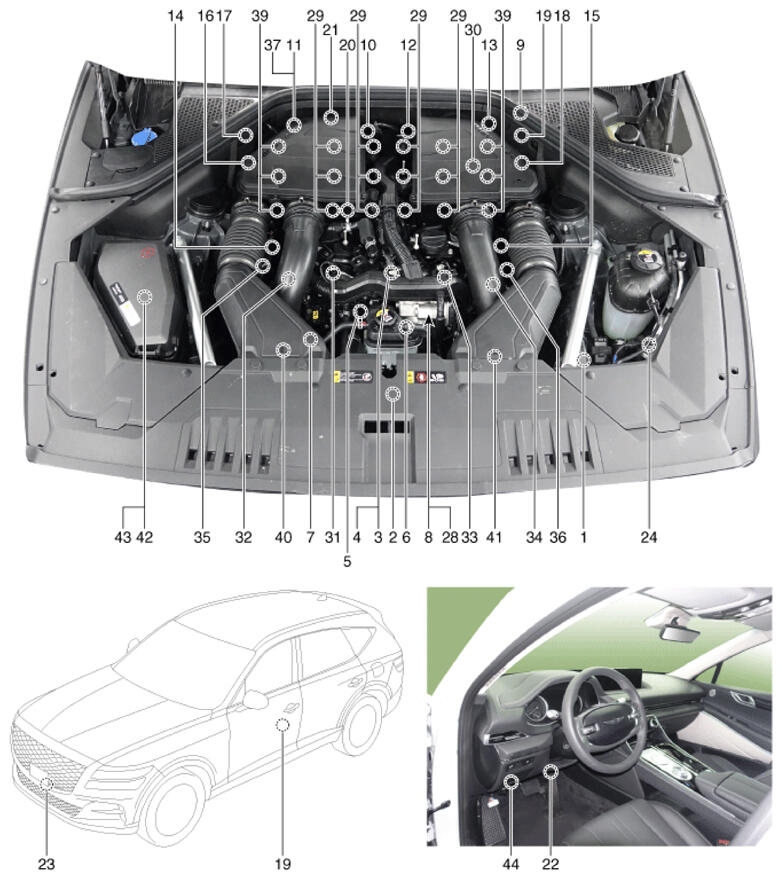

Components Location

G16776726

G16776727

G16776728

G16776729

G16776730

G16776731

G16776732

G16776733

G16776734
