Knock Sensor [Bank 1]
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the LH engine mounting support bracket.
(Refer to Engine Mechanical System - "ENGINE MOUNTING ")

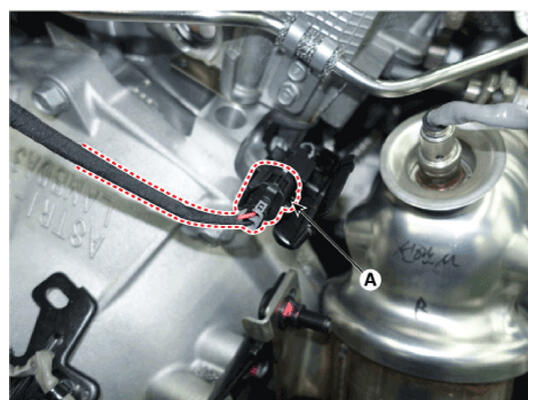

- Disconnect the knock sensor connector (A).

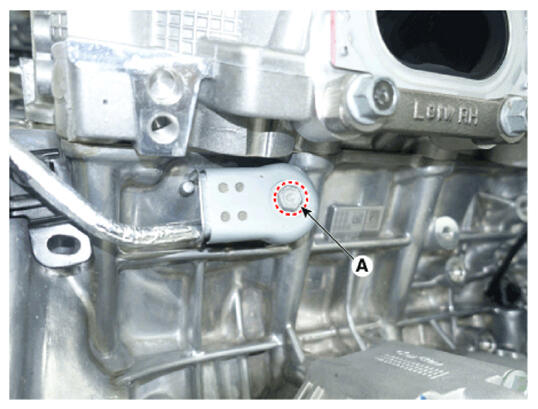

- Remove the installation bolt (A), and then remove the sensor from the cylinder block.
Tightening Torque: 15.7 - 23.5 N.m (1.6 - 2.4 kgf.m, 11.6 - 17.4 lb-ft)
