Connector assembly status test

  1. Remove the connector (A) and reinstall it.

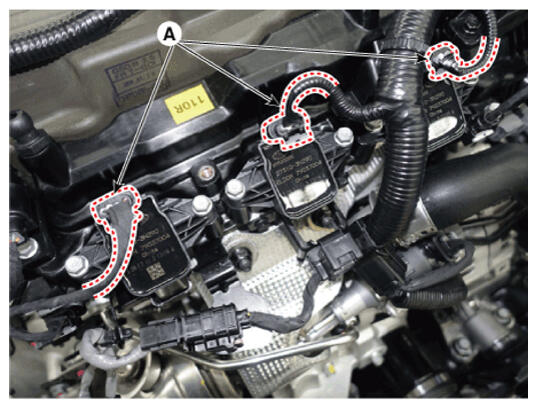

    G16776637Courtesy of HYUNDAI MOTOR AMERICA

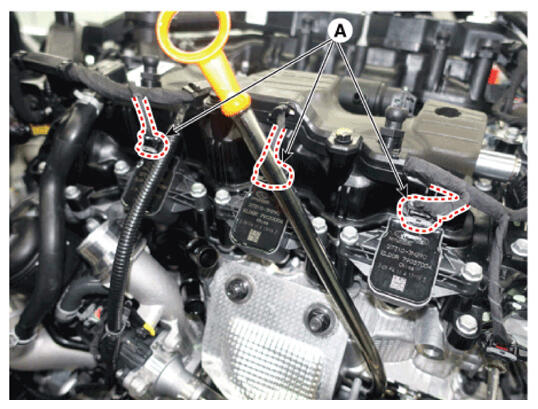

    G16776638Courtesy of HYUNDAI MOTOR AMERICA

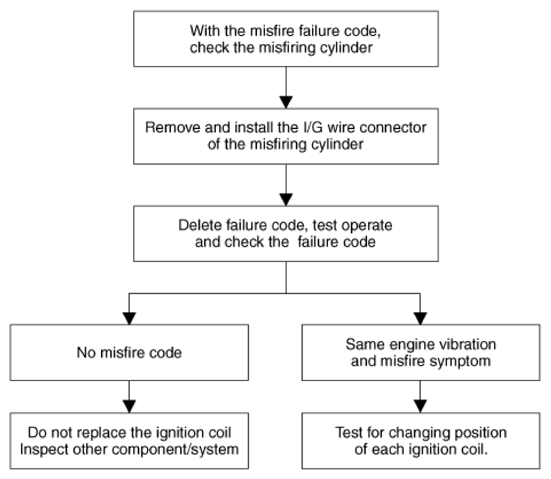

    G16776639Courtesy of HYUNDAI MOTOR AMERICA
