Removal And Installation
NOTE:
- Install the component with the specified torques.
- If a part is dropped, replace it with a new one and discard the dropped part as invisible damage may be caused.
- Insert the sensor in the installation hole and be careful not to damage when installation.
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the rear seat cushion assembly.
(Refer to Body (Interior and Exterior) - "REAR SEAT ASSEMBLY ")

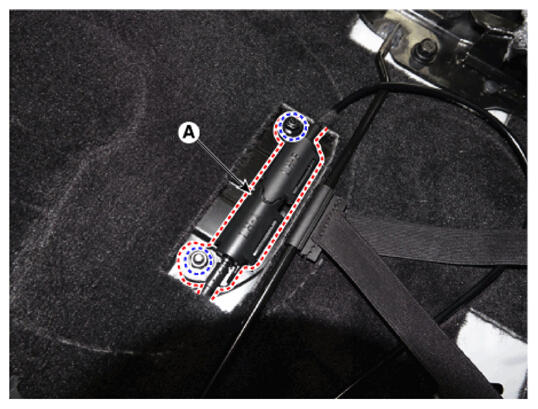

- Remove the seat folding cable bracket (A).

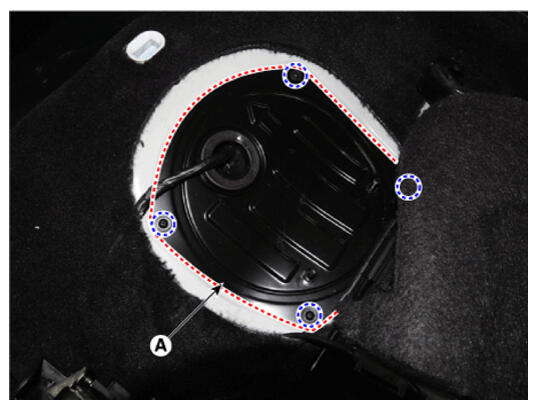

- Remove the fuel pump service cover (A) after loosening the mounting screws.

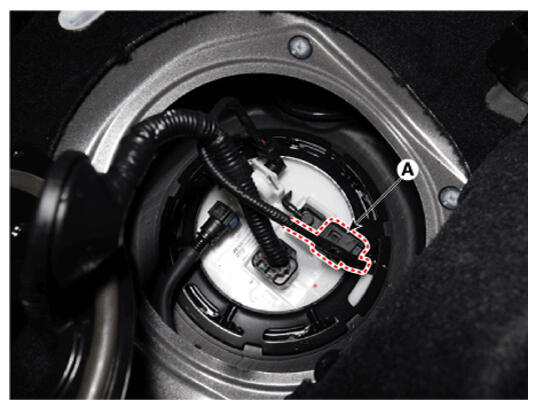

- Disconnect the fuel tank pressure sensor connector (A).

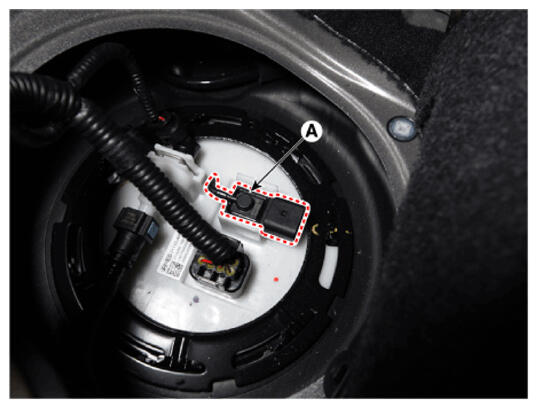

- Remove the fuel tank pressure sensor (A).
- Install in the reverse order of removal.
