TPS (Throttle Position Sensor)

[TPS 1]

Item Duty (%) Output Voltage (V)
[Vref=5V]
C.T 8.5 - 11.5% 0.43 - 0.58
W.O.T 88 - 96% 4.4 - 4.8

[TPS 2]

Item Duty (%) Output Voltage (V)
[Vref=5V]
C.T 88.5 - 91.5% 4.43 - 4.58
W.O.T 2 - 10% 0.1 - 0.5

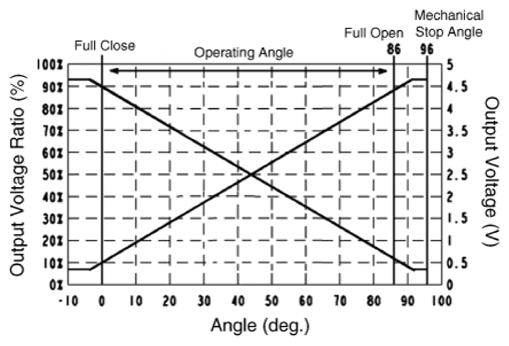

G16846863Courtesy of HYUNDAI MOTOR AMERICA
