Removal And Installation
- Turn the ignition switch OFF and disconnect the battery (-) terminal.
- Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

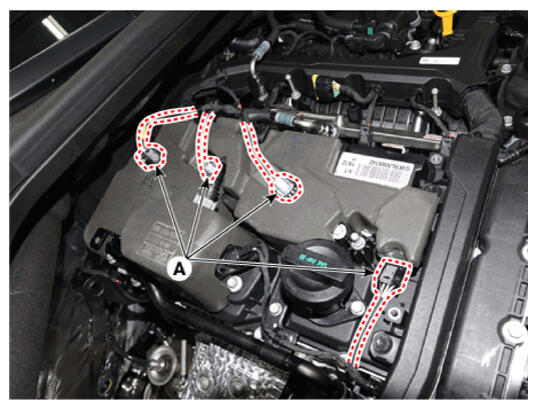

- Disconnect the ignition coil connectors (A).NOTE:

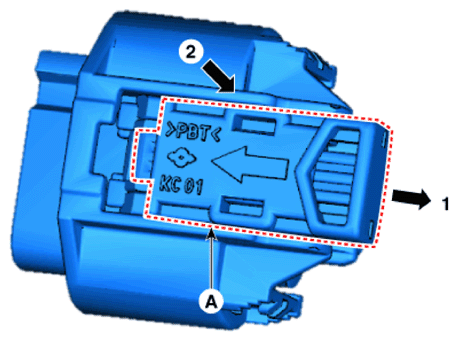

- When removing the ignition coil connector, pull the lock pin (A) and push the clip.

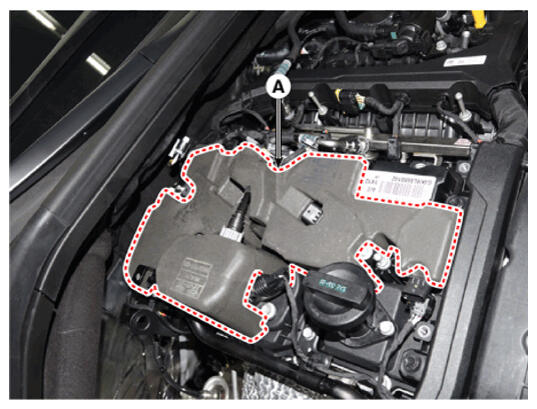

- Remove the ignition coil form (A).

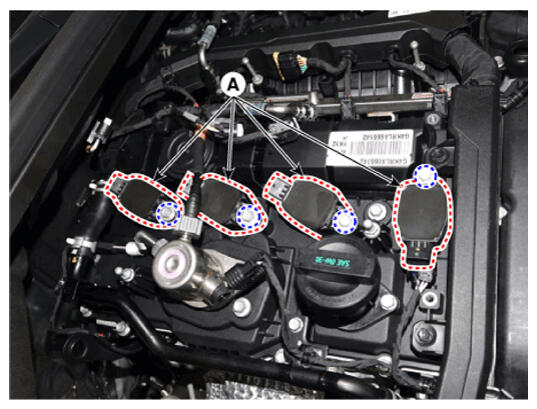

- Remove the ignition coils (A).
Tightening torque: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
- Install in the reverse order of removal.
