Rear wheel alignment: Camber

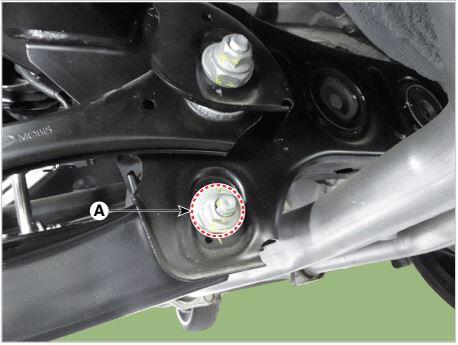

Adjust rear camber by turning the rear lower arm cam bolt (A) clockwise or counter clockwise. Camber adjustment should be made by turning the right and left cam bolt by the same amount.
Camber: - 1.5° ± 0.5° (Within right and left difference 0.5°)
| Cam bolt | Direction of rotation | Toe |
|---|---|---|
| Left side (Driver side) | clockwise | Decrease (Toe in) |
| counterclockwise | Increase (Toe out) | |
| Right side (Passenger side) | clockwise | Increase (Toe out) |
| counterclockwise | Decrease (Toe in) |
Information
- One needle turn (adjusting one side only) : about 0.23°
