Wheel Alignment: Tires/Wheels/Alignment: Tire: Installation

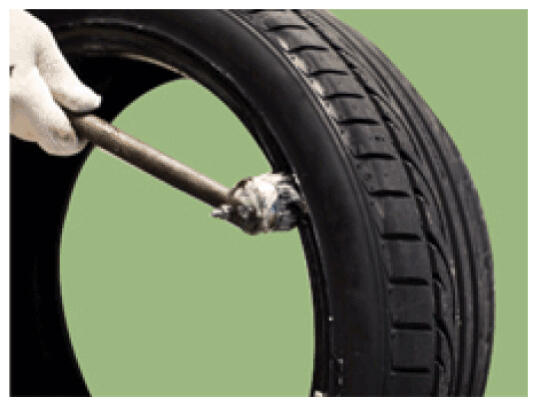

Apply tire soap or lubrication to the top and bottom tire beads.

CAUTION:

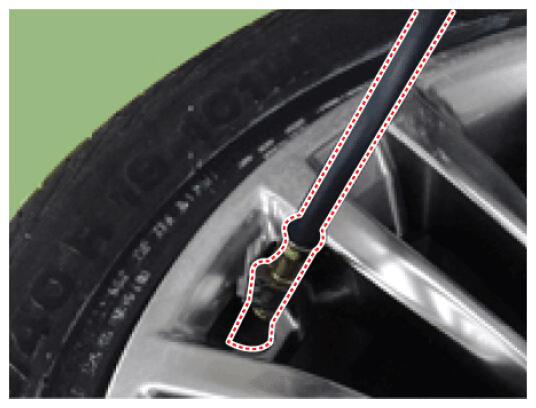

When changing the wheel, the clamp type TPMS sensor can be reused.

Courtesy of HYUNDAI MOTOR AMERICA

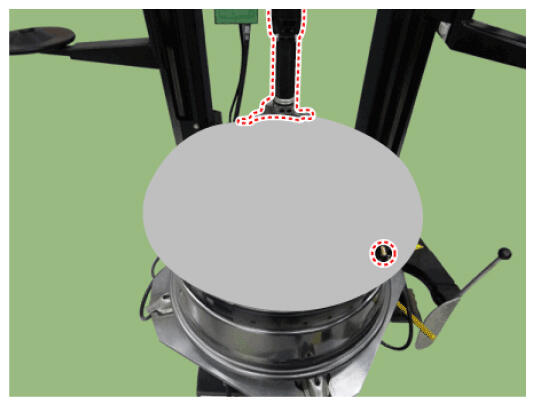

To fit the bottom bead, position the valve at the 5 o'clock position relative to the head on the tire changing machine.

Courtesy of HYUNDAI MOTOR AMERICA

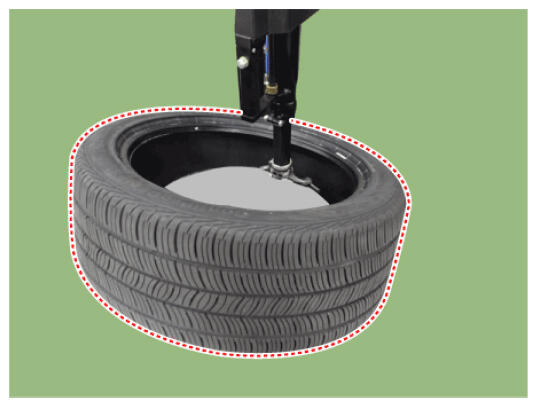

Place the tire on the rim so the bottom bead touches the edge of the rim after the valve (6 o'clock). Rotate the rim clockwise, and push down on the tire at the 3 o'clock position to fit bottom bead.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Install the tire to the wheel so that the bead hits the rim edge (at 6 o'clock) behind the sensor.

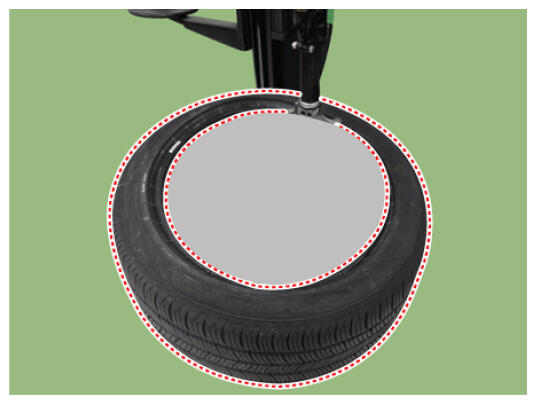

Push down on the tire at the 3 o'clock position and rotate the rim clockwise to fit the top bead.

Courtesy of HYUNDAI MOTOR AMERICA
Inflate the tire until both beads seat.
Recommended Tire pressure

Front : 230 kPa (33 psi)

235/60 R18, 235/55 R19

Rear : 250 kPa (36 psi)

255/40 R21

Rear: 260 kPa (38 psi)

Courtesy of HYUNDAI MOTOR AMERICA
