Wheel Alignment: Tires/Wheels/Alignment: Wheel: Installation

Install the wheel and tire (A).

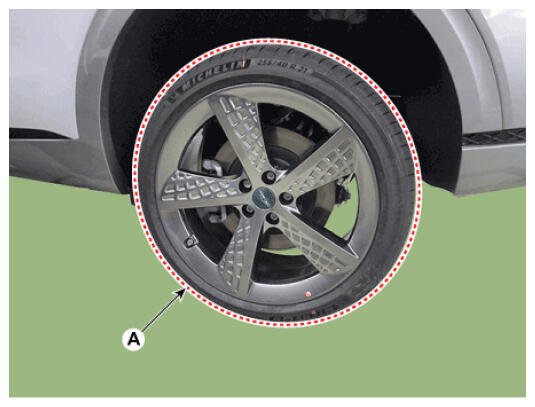

[Front]

Courtesy of HYUNDAI MOTOR AMERICA

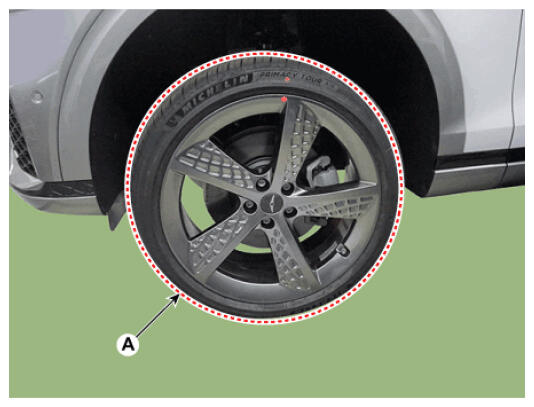

[Rear]

Courtesy of HYUNDAI MOTOR AMERICA
Tighten the hub bolts as follows.
Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)
NOTE:
- When using an impact gun, final tightening torque should be checked using a torque wrench.

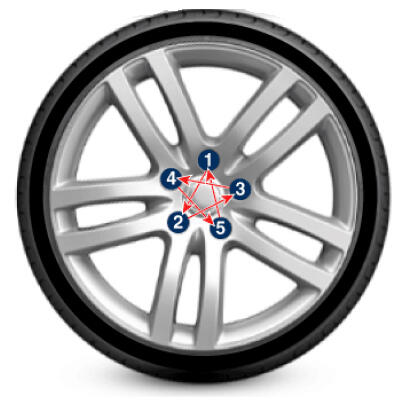

  Fig 1: Hub Bolts Tightening Sequence
  Courtesy of HYUNDAI MOTOR AMERICA
