Creation condition and calibration method

  1. In case of replacing the ECU only
    • Perform "the ECU Date Back-up & Writing" procedure.

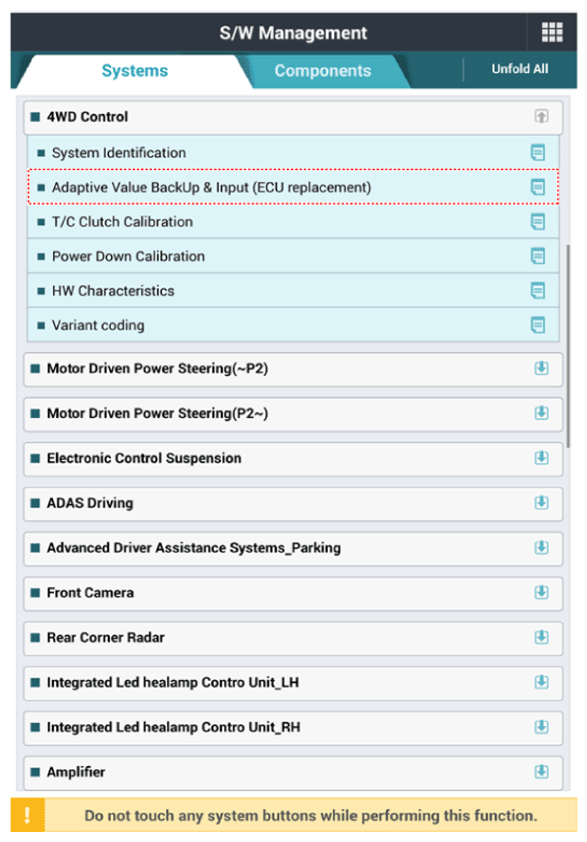

G16847497Courtesy of HYUNDAI MOTOR AMERICA

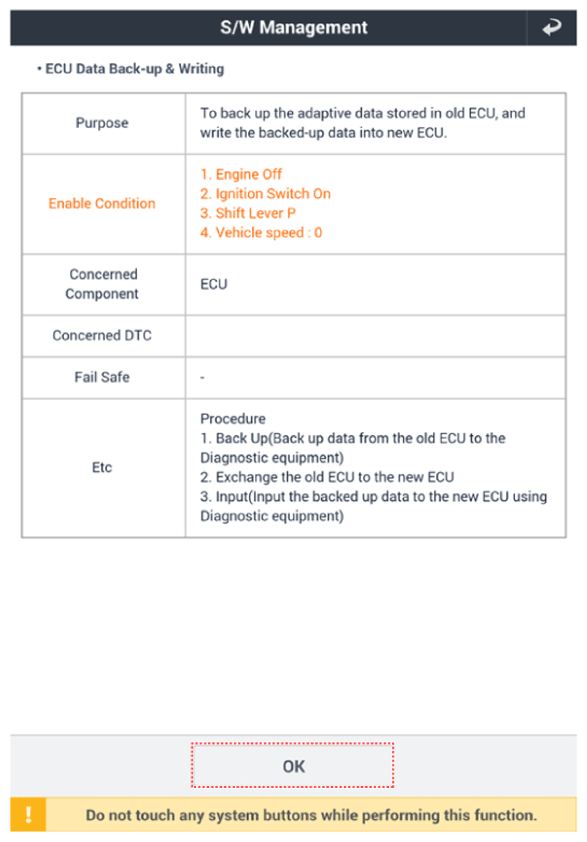

G16847498Courtesy of HYUNDAI MOTOR AMERICA

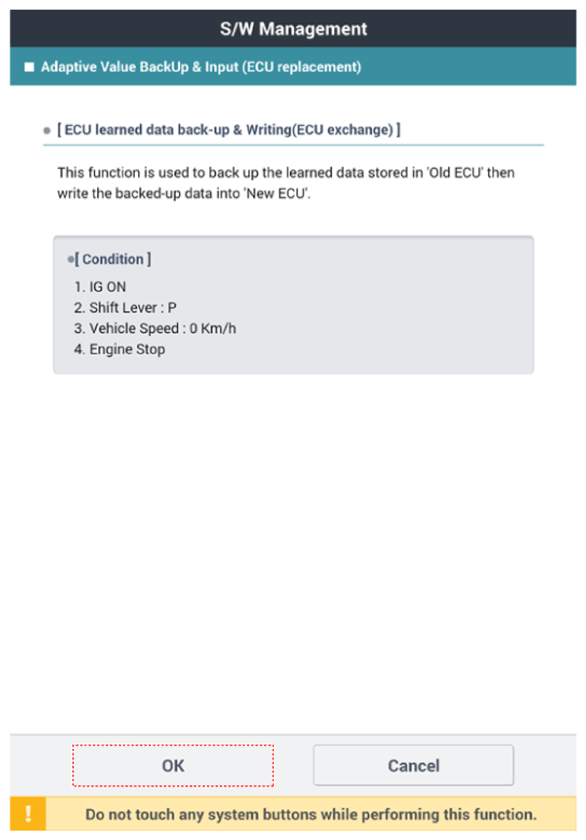

G16847499Courtesy of HYUNDAI MOTOR AMERICA

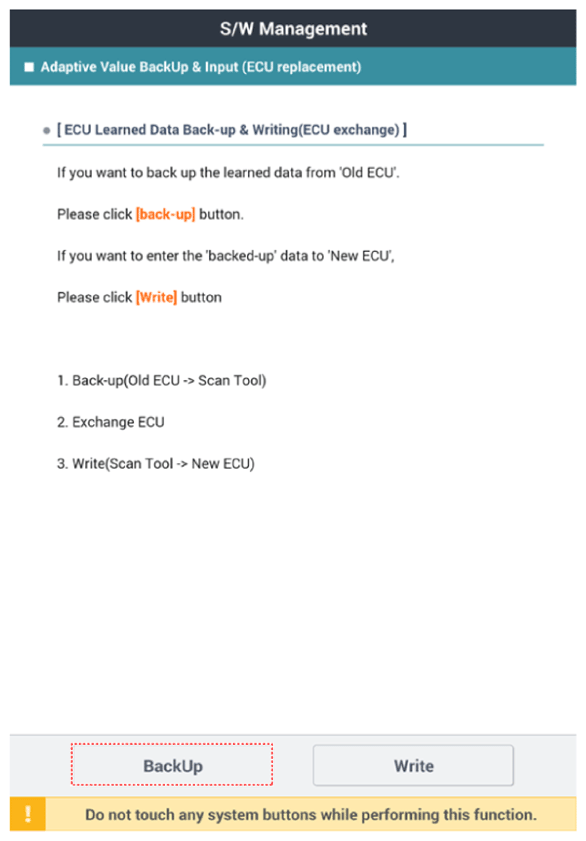

G16847500Courtesy of HYUNDAI MOTOR AMERICA

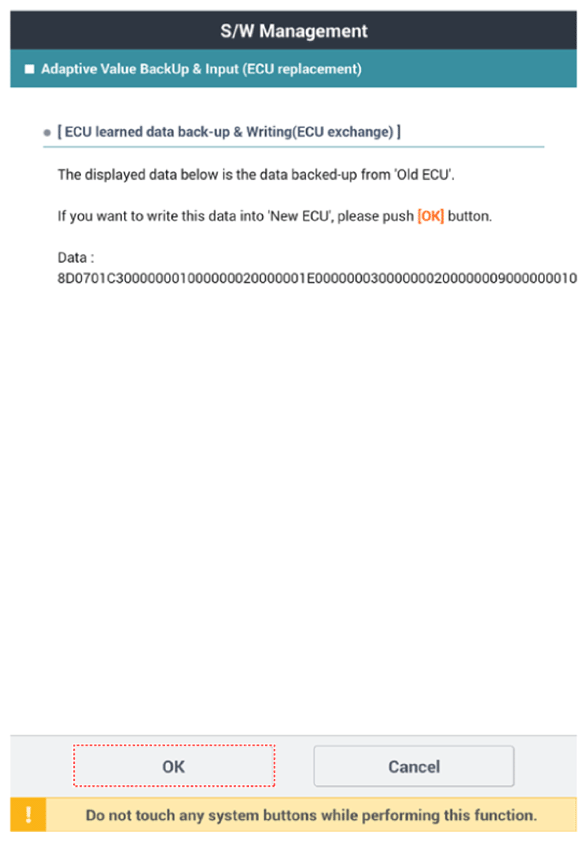

G16847501Courtesy of HYUNDAI MOTOR AMERICA

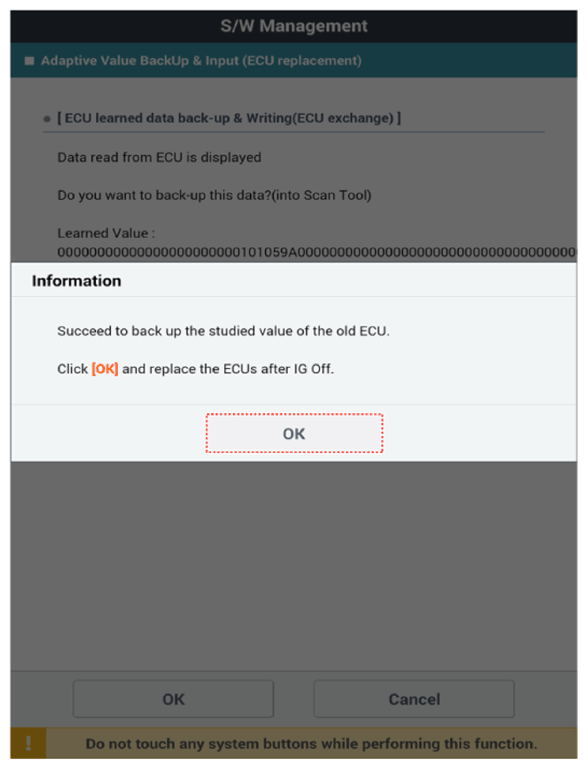

G16847502Courtesy of HYUNDAI MOTOR AMERICA

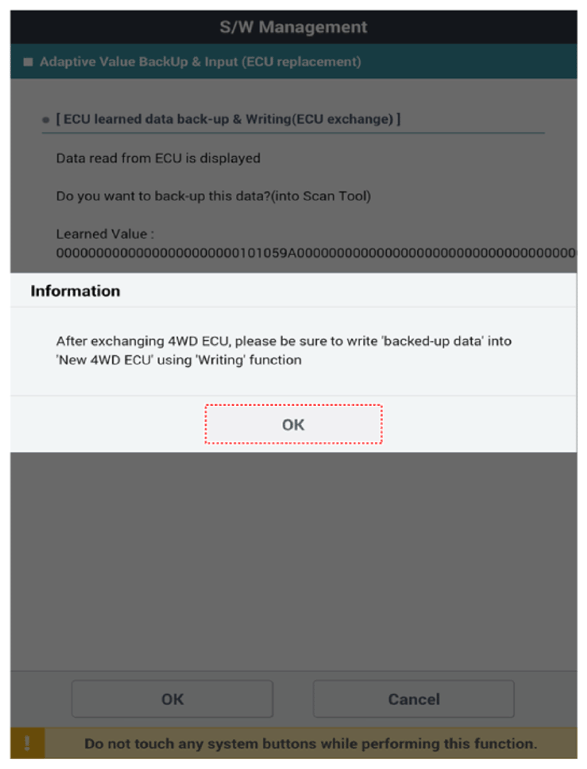

G16847503Courtesy of HYUNDAI MOTOR AMERICA
G16847504Courtesy of HYUNDAI MOTOR AMERICA

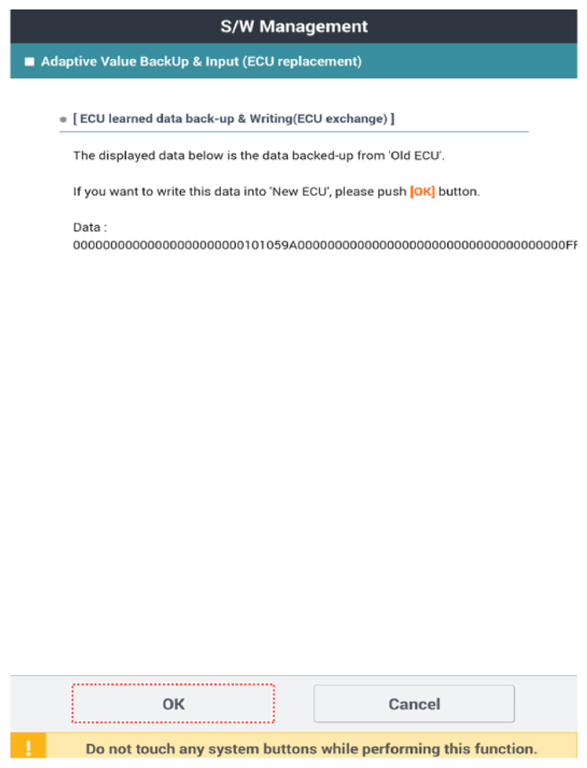

G16847505Courtesy of HYUNDAI MOTOR AMERICA

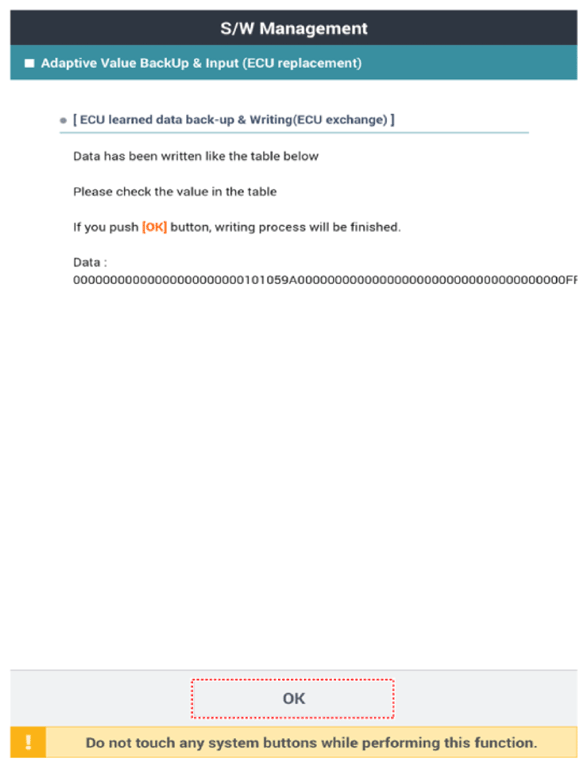

G16847506Courtesy of HYUNDAI MOTOR AMERICA
