Idle Speed: Notes

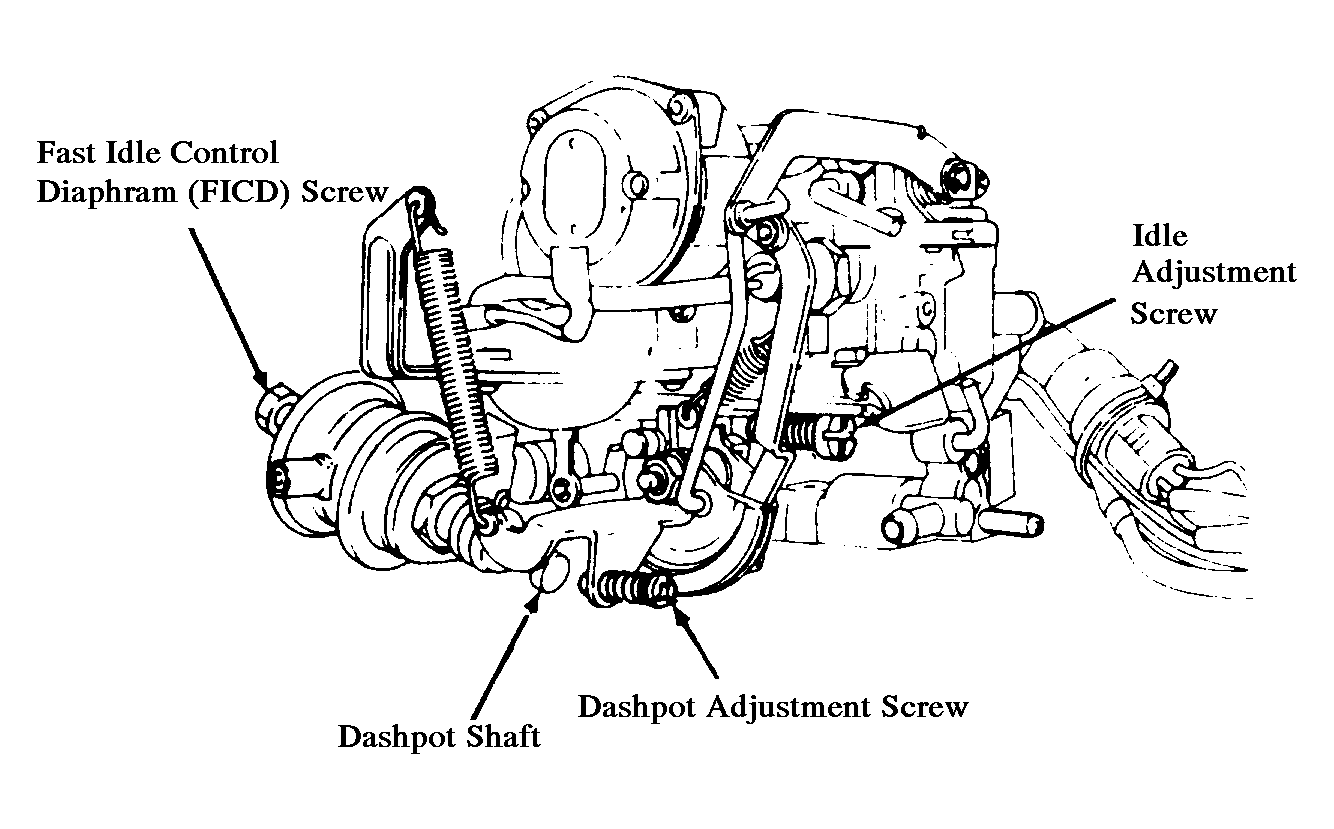

Warm engine to operating temperature and turn all accessories off. Disconnect and plug all carburetor vacuum lines. Place transmission in Neutral. Set parking brake, and block drive wheels. Check idle speeds. See IDLE SPEED SPECIFICATIONS table. If not within specification, turn idle speed adjusting screw. See Figure .
