TPS Resistance: Notes

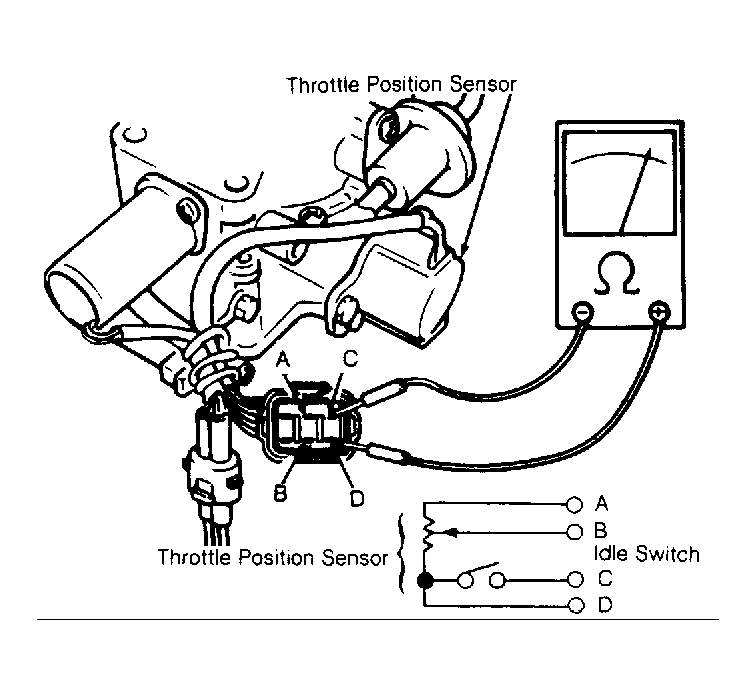

THROTTLE POSITION SENSOR RESISTANCE
| Application |
Ohms |
| Tracker |
| Between Terminals C-D |
| At Idle |
0-500 |
| Wide Open Throttle |
Infinite |
| Between Terminals A-D |
3500-6500 |
| Between Terminals B-D |
| At Idle |
0-2000 |
| Wide Open Throttle |
2000-6500 |
Courtesy of GENERAL MOTORS CORP.
