Diagnostic Aids

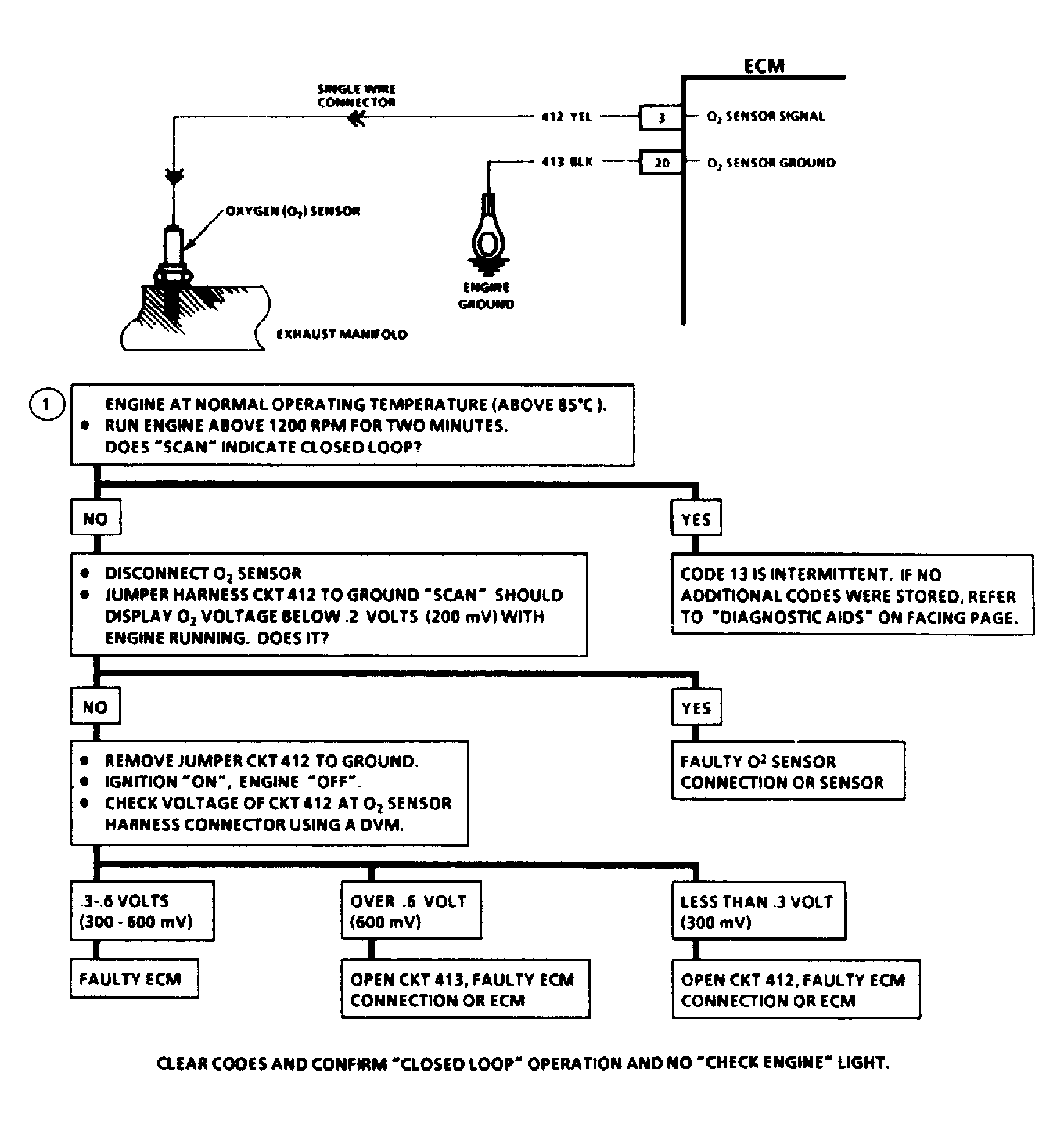

Verify circuit No. 413 has a clean and tight ground connection. If circuits No. 412 or 413 is open, Code 13 will set. An intermittent may be caused by rubbed through insulation or a wire broken inside the wire insulation. Check ECM harness connectors for backed out or damaged terminals. If code is intermittent, see TESTS W/O CODES article.
