Diagnostic Aids

After engine is started, engine coolant temperature should rise to approximately 194°F (90°C) and stabilize when thermostat opens. Code 14 will set if circuit No. 410 is shorted to ground. If code is intermittent, see TESTS W/O CODES article.

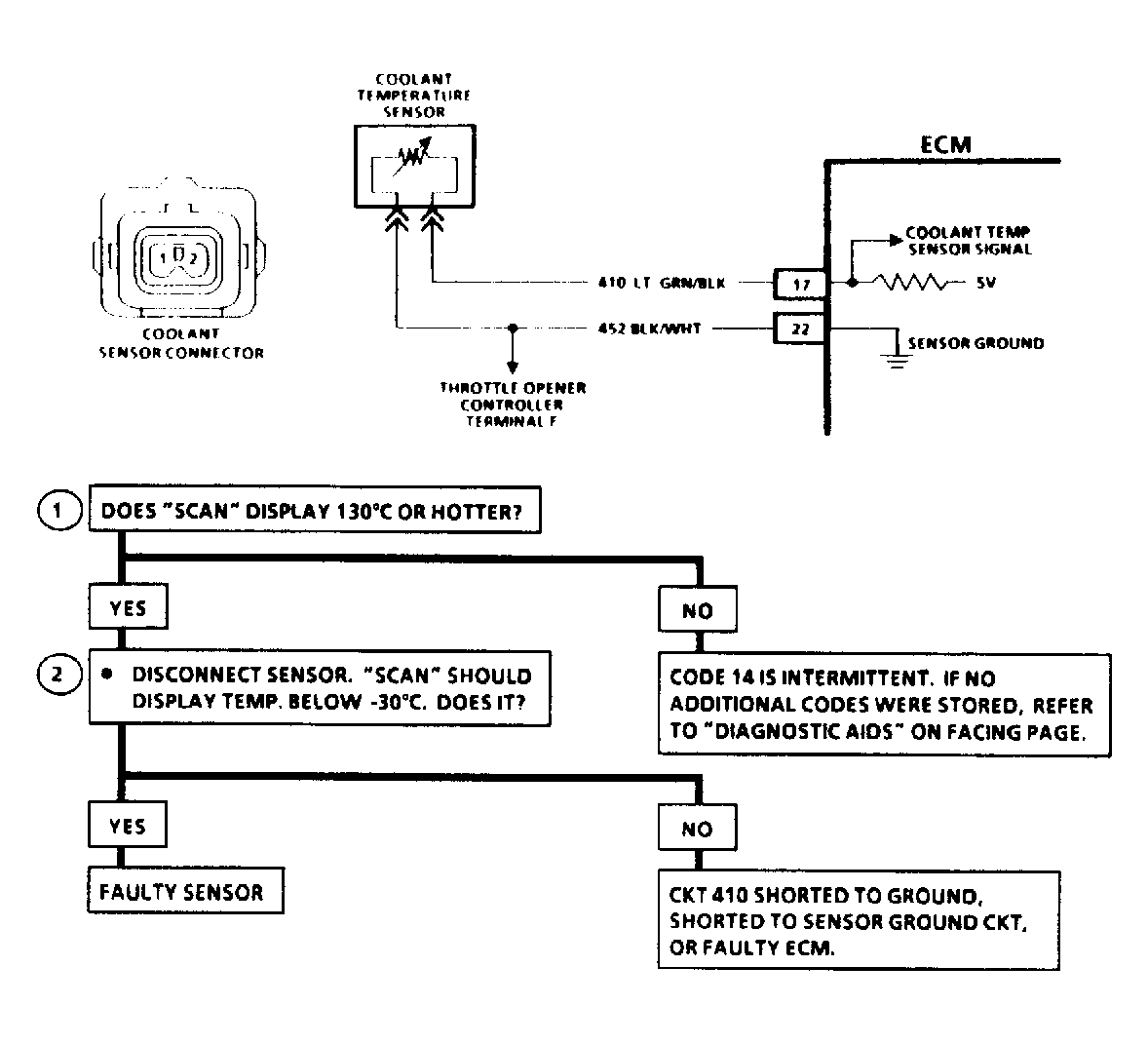

Fig 1: Code 14, Circuit Wiring Diagram & Flow Chart

Courtesy of GENERAL MOTORS CORP.
