Diagnostic Aids

Check fuel cut-off relay connector for loose connections or backed out terminals. Relay is located behind instrument panel.

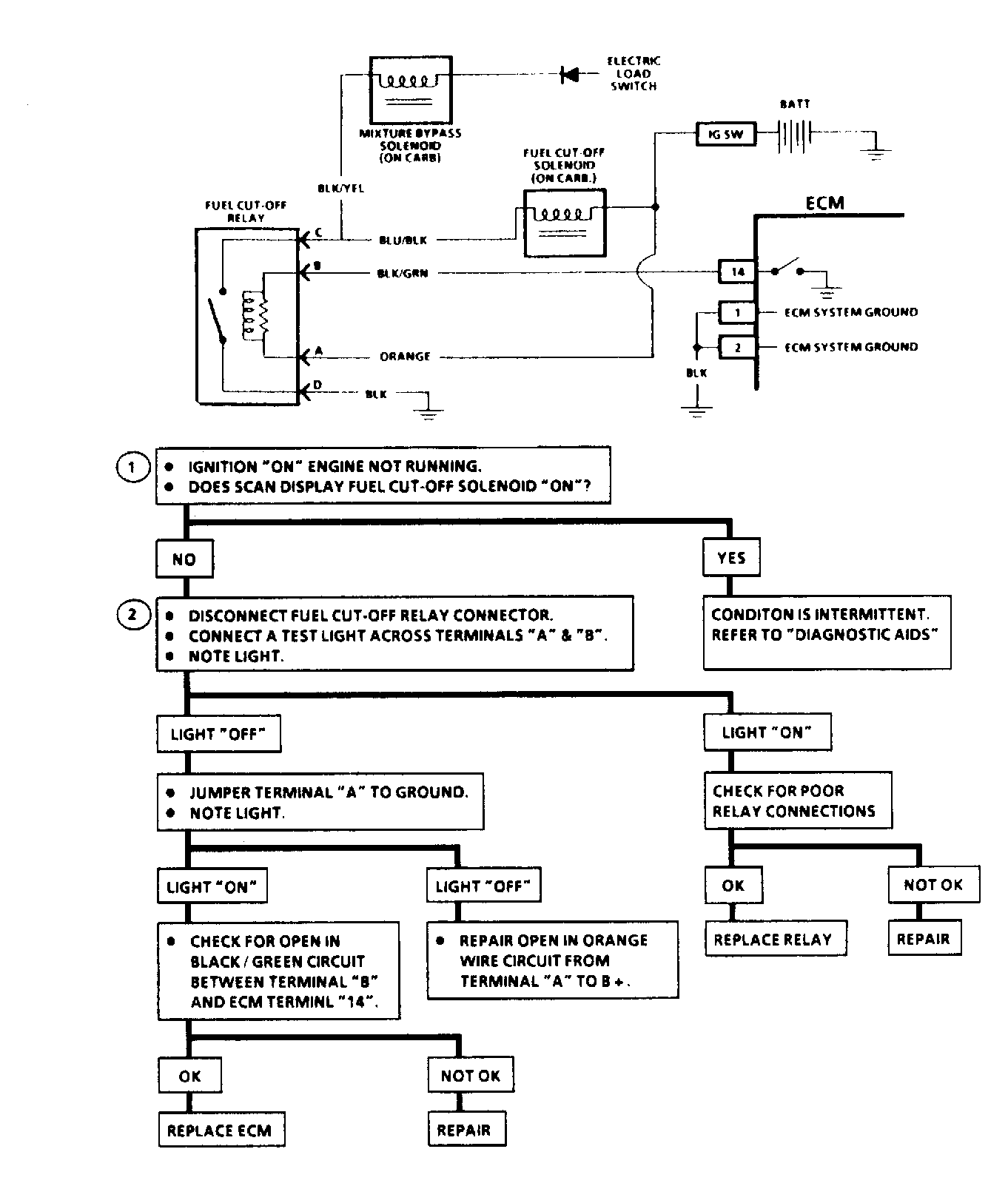

Fig 1: Code 22, Circuit Wiring Diagram & Flow Chart

Courtesy of GENERAL MOTORS CORP.
