Diagnostic Aids

Verify clean tight connections at ECM terminal No. 13 and at AIR VSV solenoid. If code is intermittent, see TESTS W/O CODES article.

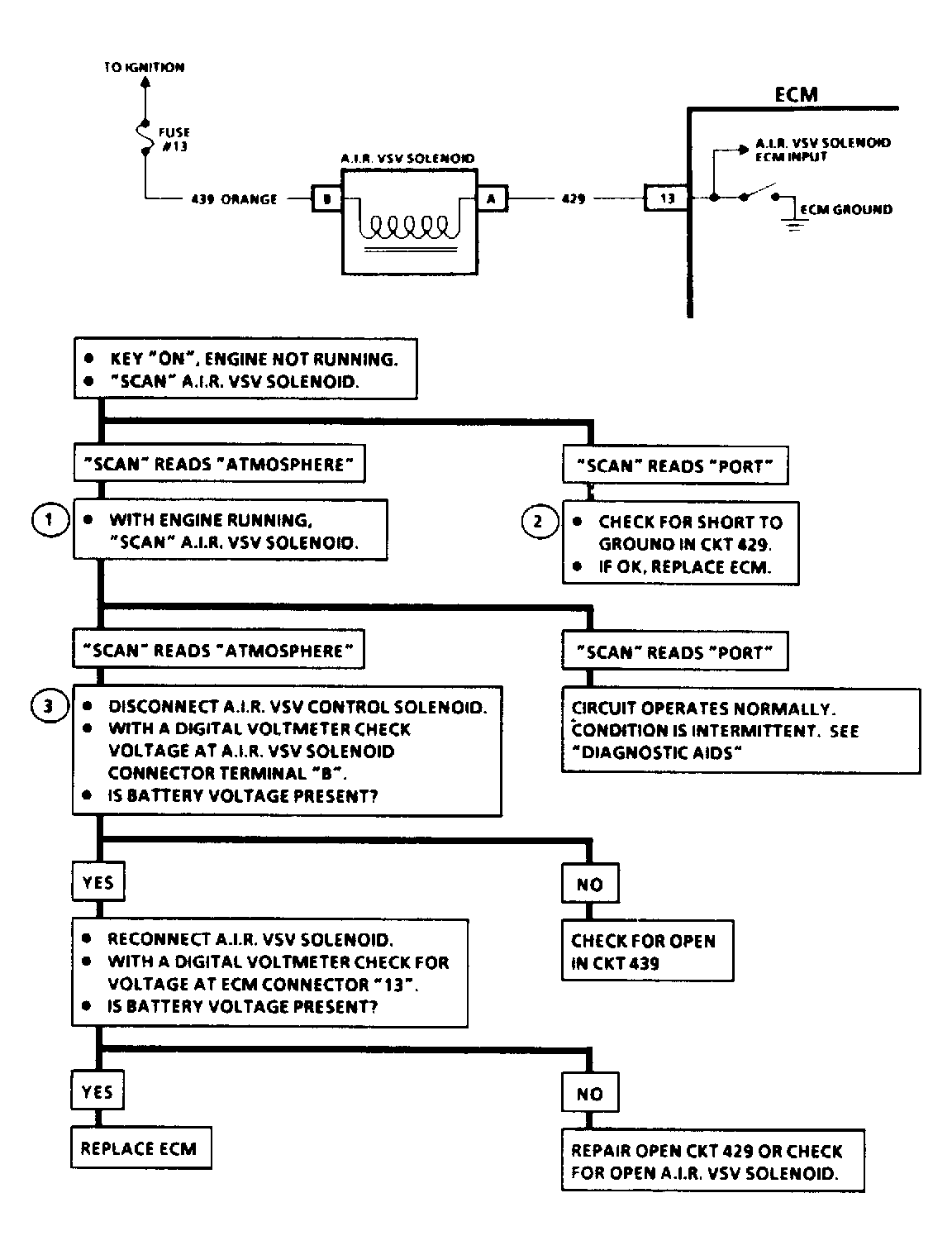

Fig 1: Code 25, Circuit Wiring Diagram & Flow Chart

Courtesy of GENERAL MOTORS CORP.
