Diagnostic Aids

Ensure TPS and idle switch operate normally. If ECM is receiving the wrong signal from throttle switches, a false deceleration could be sensed. See I - SYS/COMP TESTS article. If code is intermittent, see TESTS W/O CODES article.

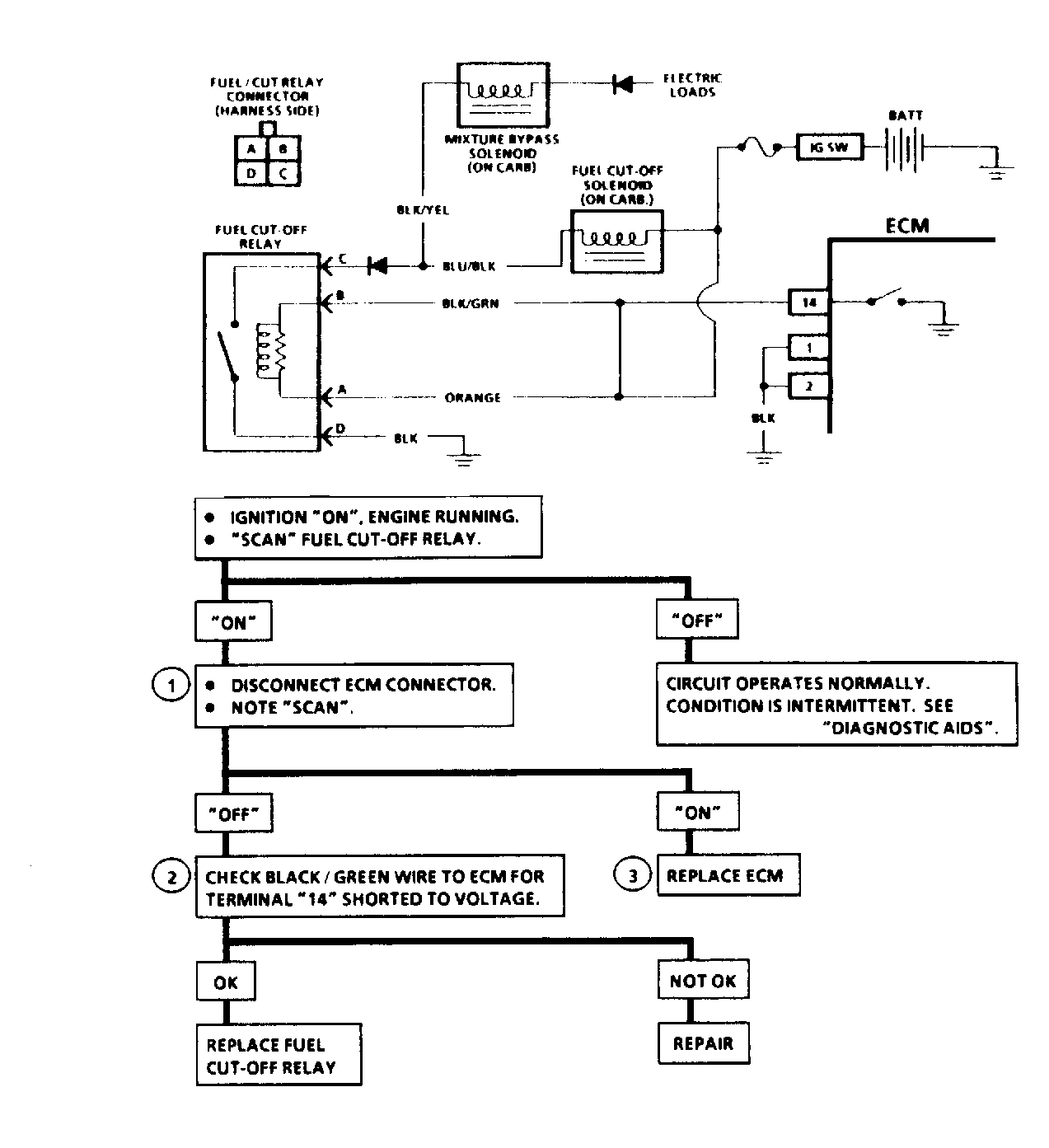

Fig 1: Code 42, Circuit Wiring Diagram & Flow Chart

Courtesy of GENERAL MOTORS CORP.
