Diagnostic Aids

Check for corrosion at ECM connectors and terminals. Check for windshield or heater core leaks. If leaks are present, repair leak, clean connector terminals and check for Code 55 again. If Code 55 sets again, replace ECM.

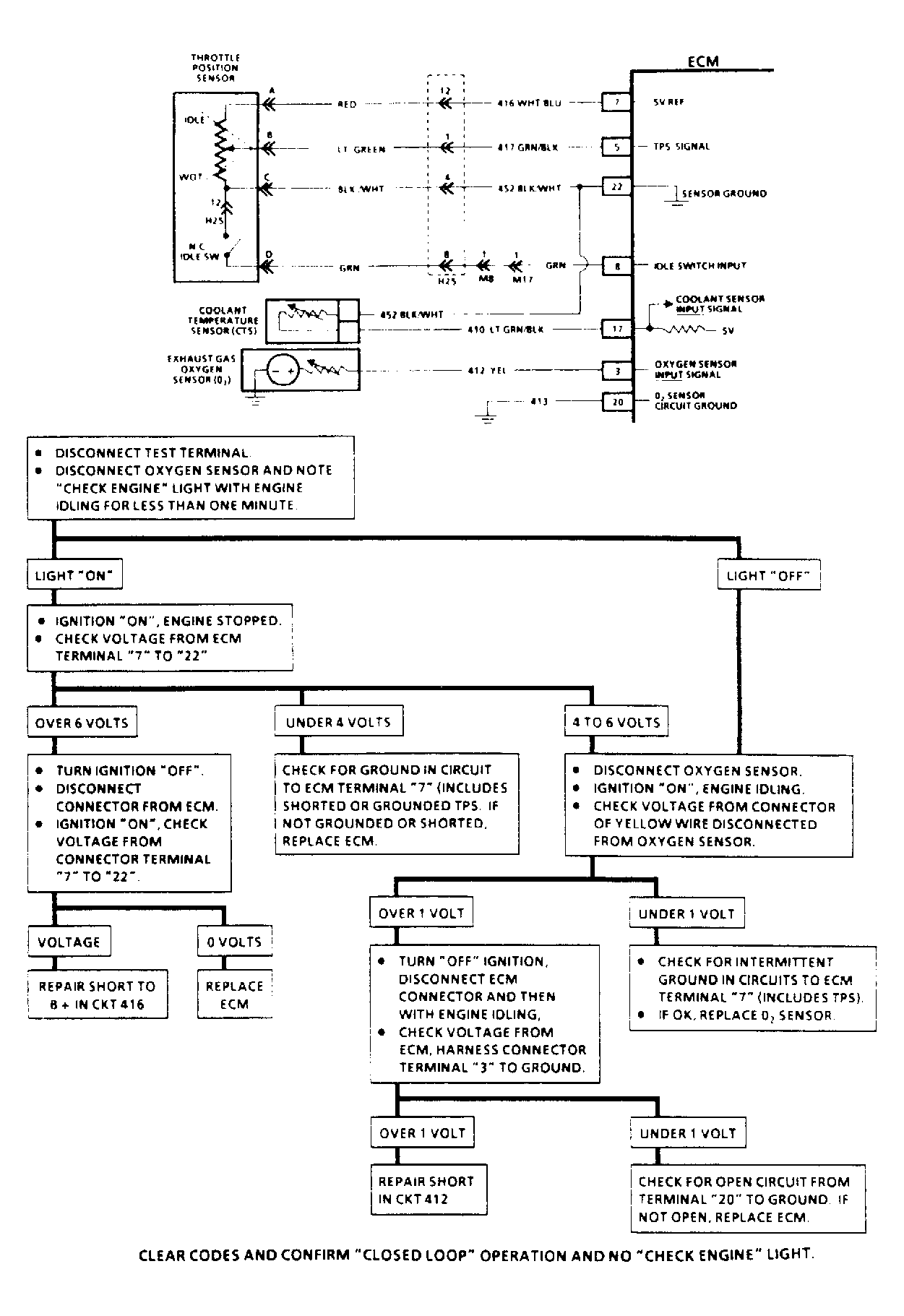

Fig 1: Code 55, Circuit Wiring Diagram & Flow Chart

Courtesy of GENERAL MOTORS CORP.
