Cruise Control Module: Description and Operation

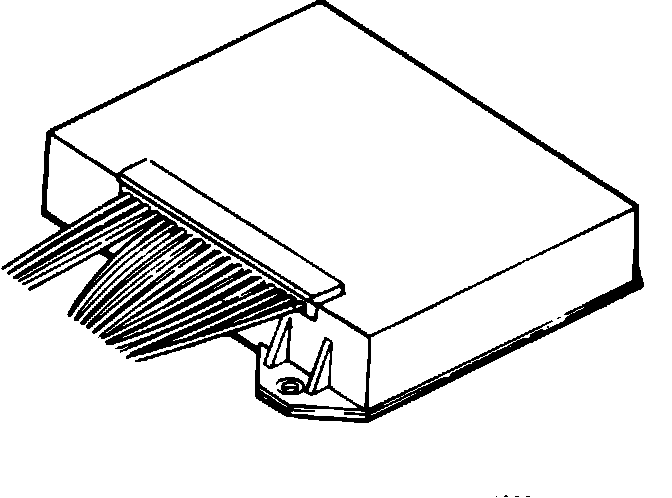

Electronic Module:

The electronic module interprets the position of the servo unit, the position of the mode control switches, and the output of the speed sensor. In response to these inputs, the module electrically signals the servo motor to drive the actuating rack in or out. The electronic module is located under the dash on the driver's side.
