Cruise Control: Testing and Inspection

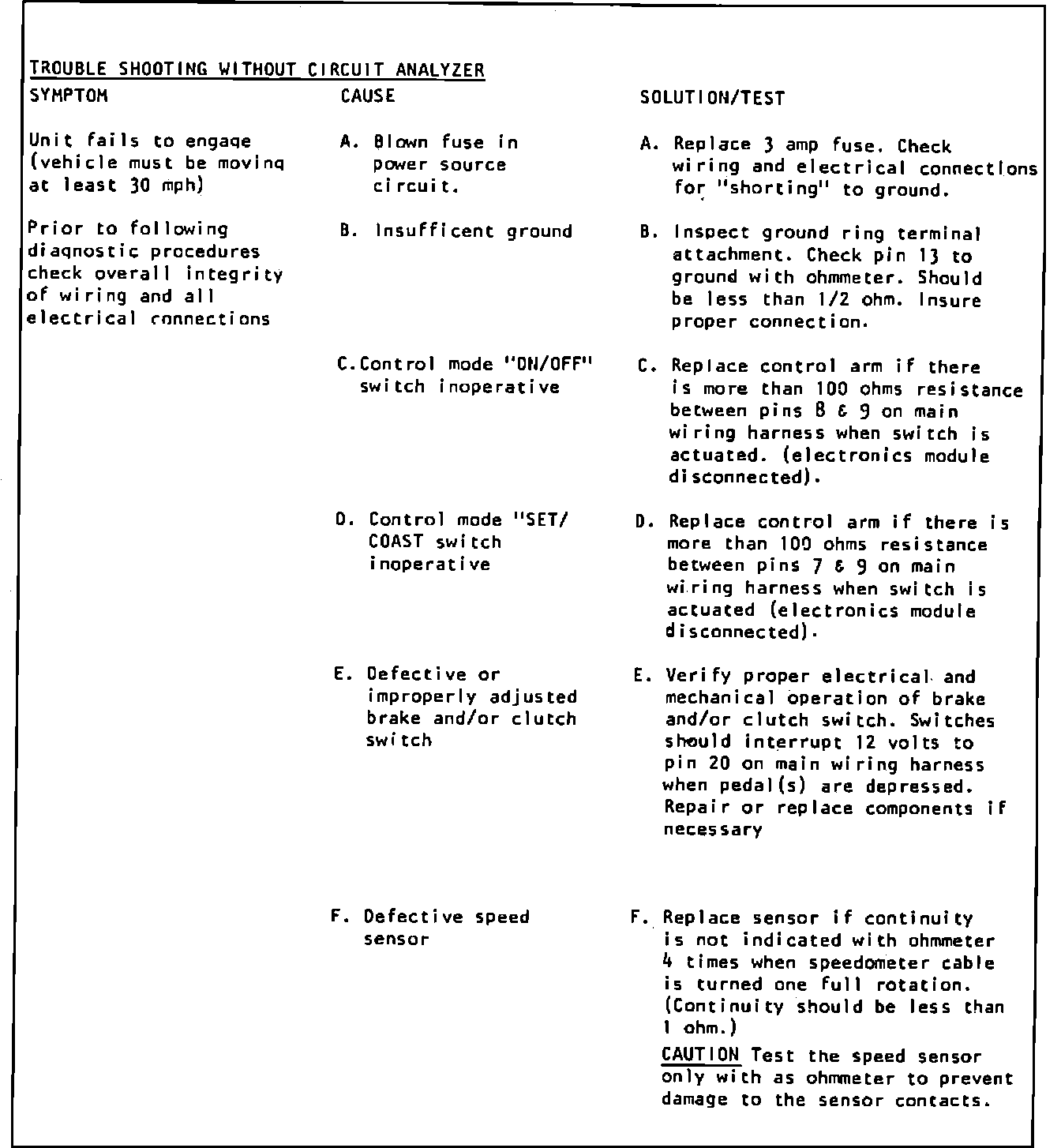

Fig. 1 Cruise Control Diagnostic Procedure (Part 1 Of 4):

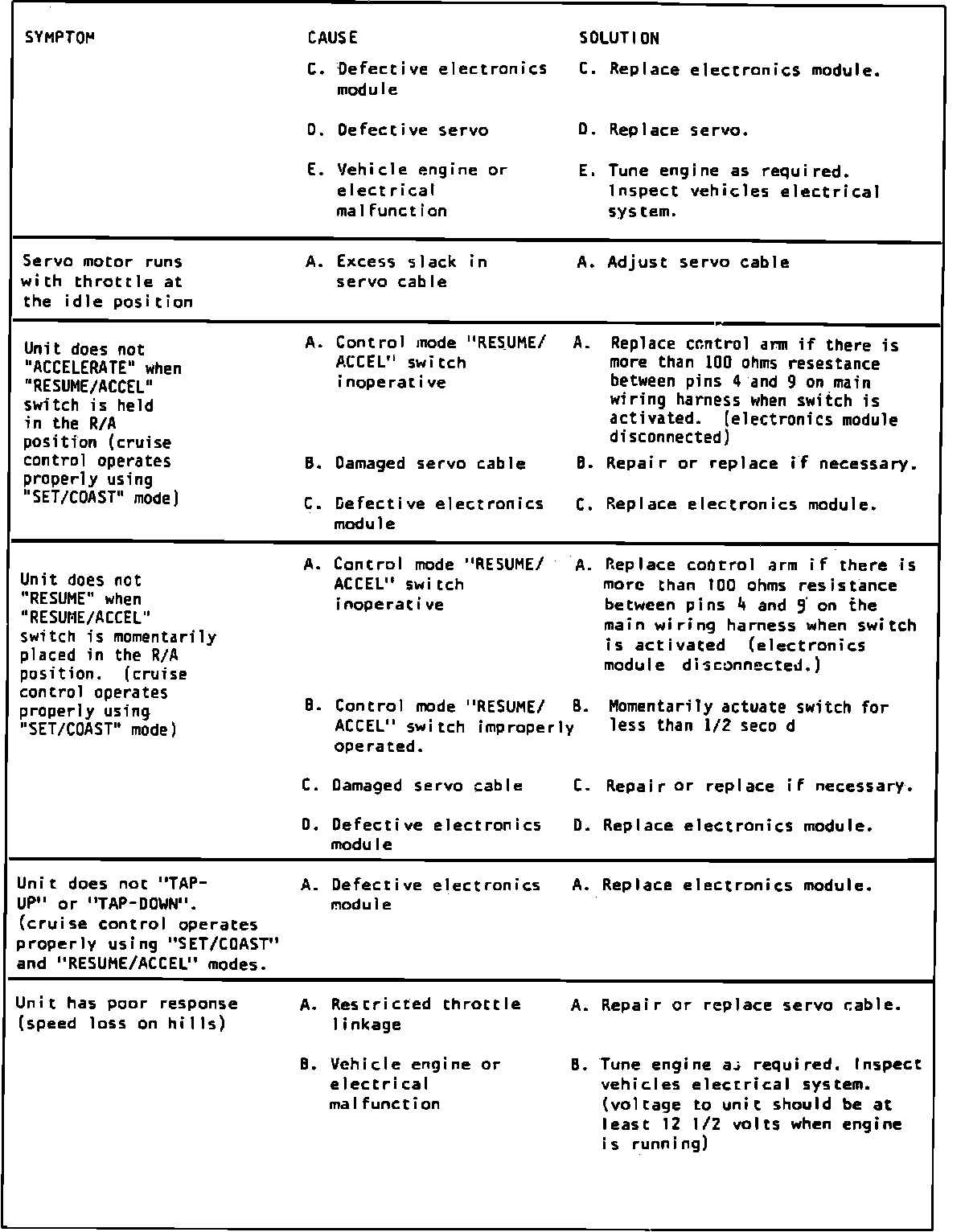

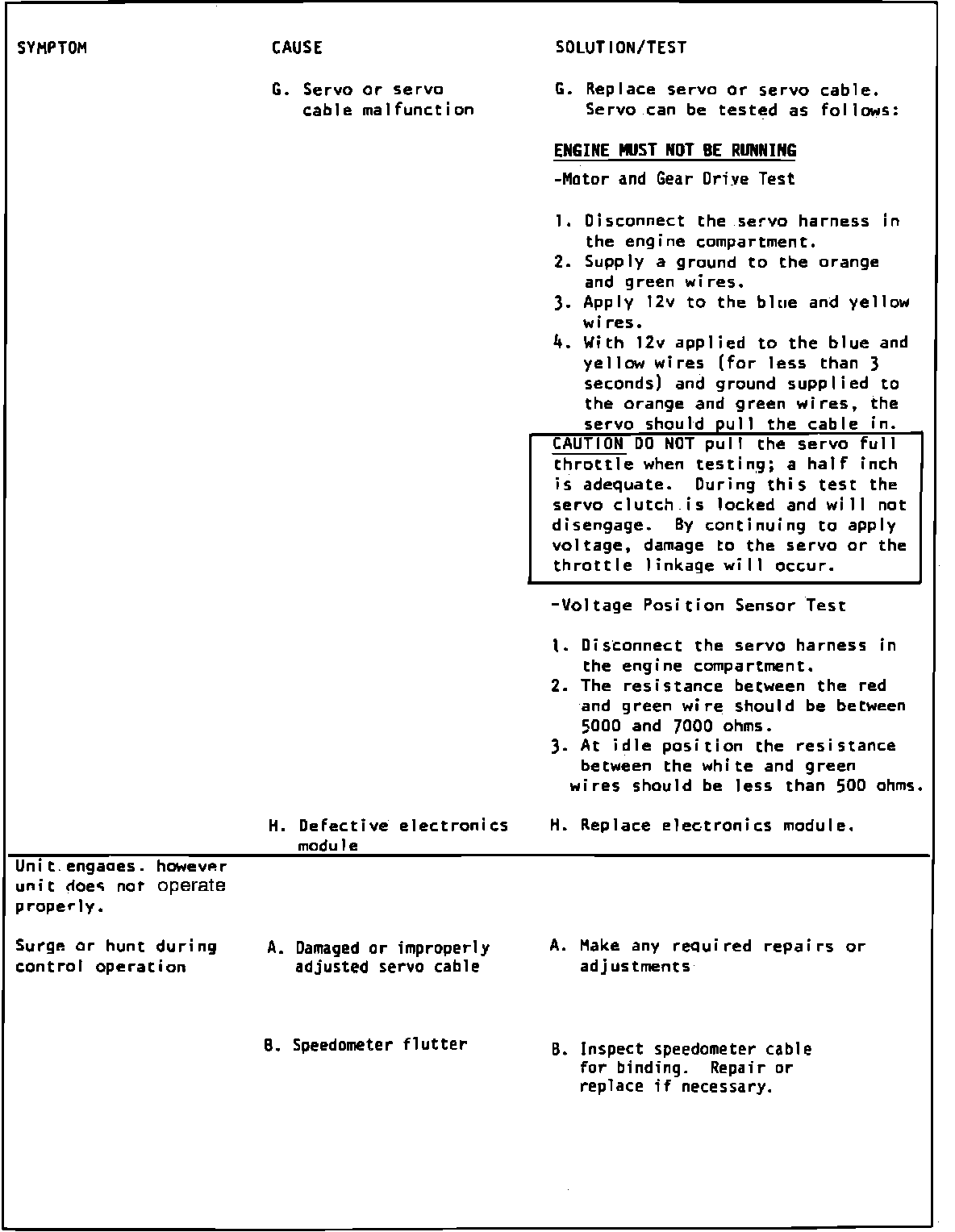

Fig. 1 Cruise Control Diagnostic Procedure (Part 2 Of 4):

Fig. 1 Cruise Control Diagnostic Procedure (Part 3 Of 4):

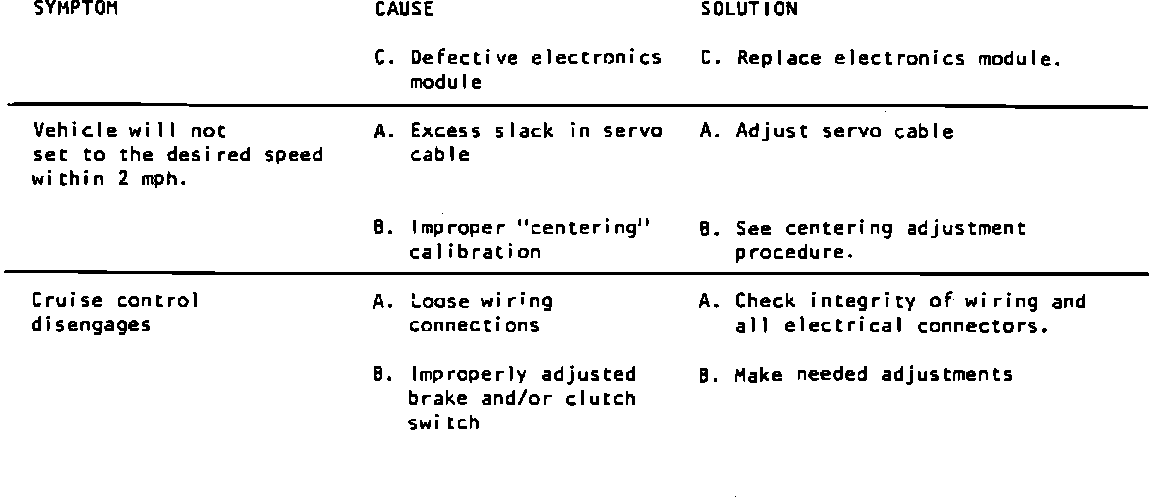

Fig. 1 Cruise Control Diagnostic Procedure (Part 4 Of 4):

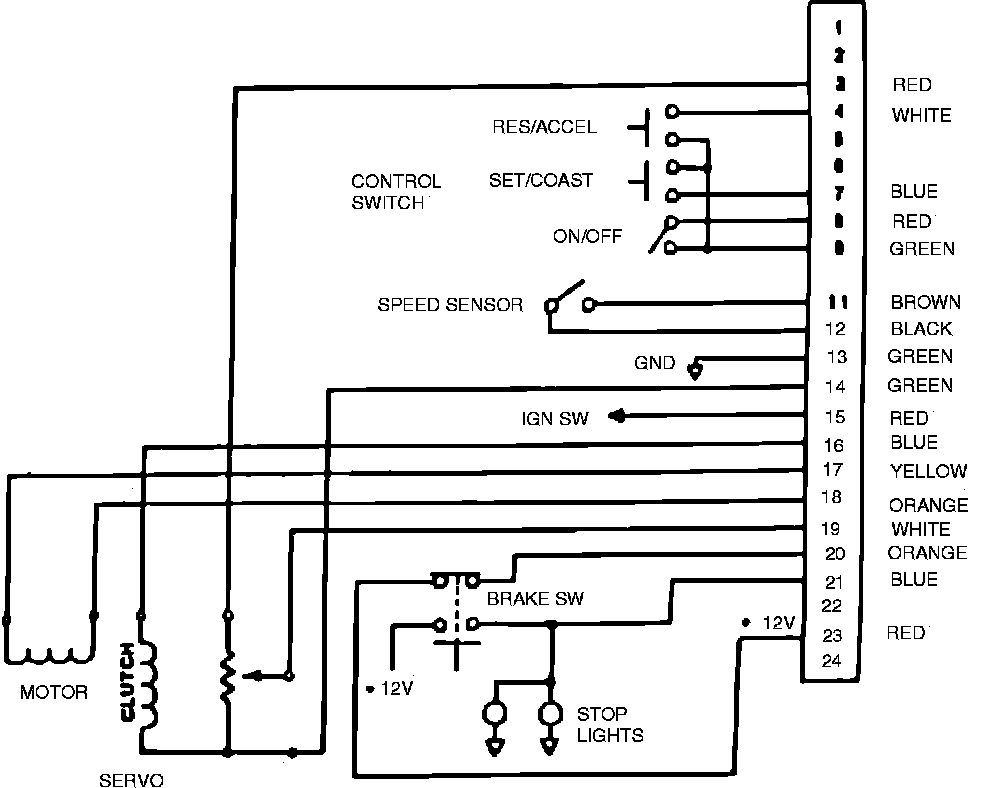

Fig. 2 Cruise Control Wiring Circuit. Manual Transmission:

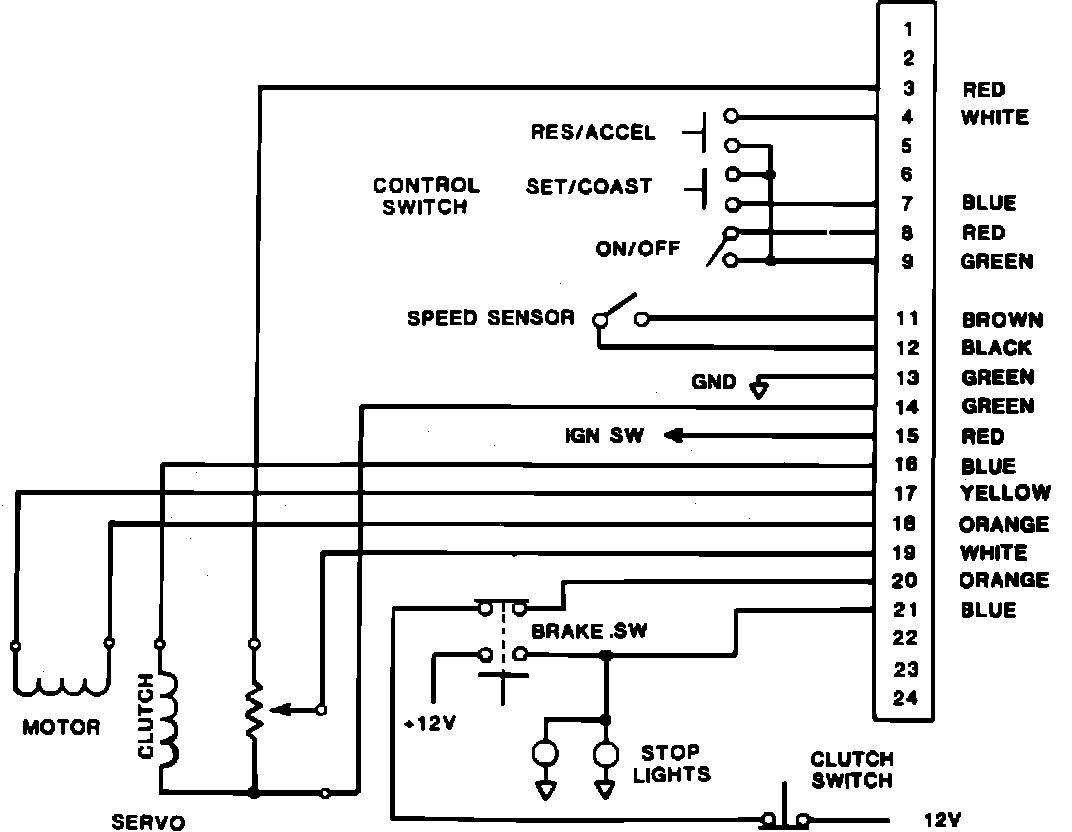

Fig. 3 Cruise Control Wiring Circuit. Automatic Transmission:

For cruise control system diagnosis, refer to Fig. 1 for diagnostic procedures and for cruise control electrical circuits and connector pin locations, refer to Figs. 2 and 3.
