Throttle Position Sensor: Testing and Inspection

THROTTLE POSITION SENSOR:

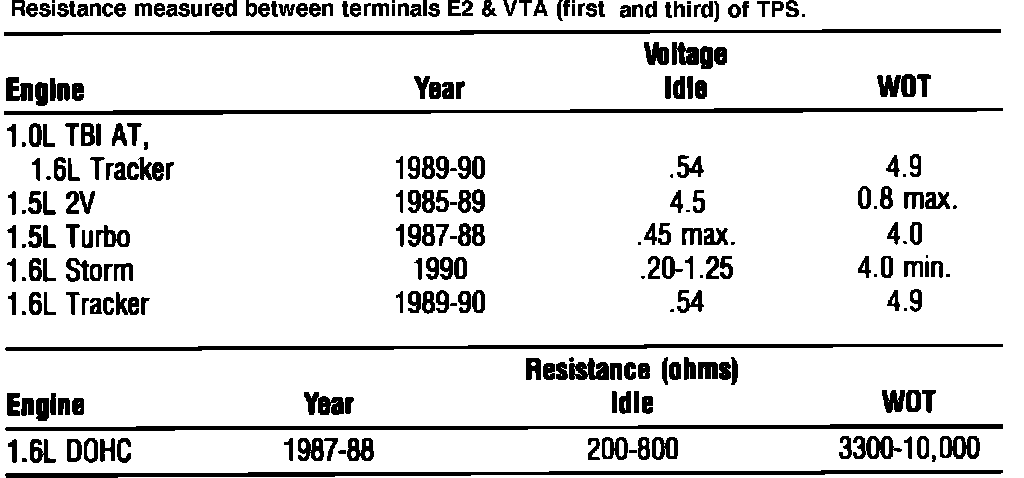

1.6L DOHC: Resistance measured between terminals E2 & VTA (first and third) of TPS.
