Throttle Position Switch: Testing and Inspection

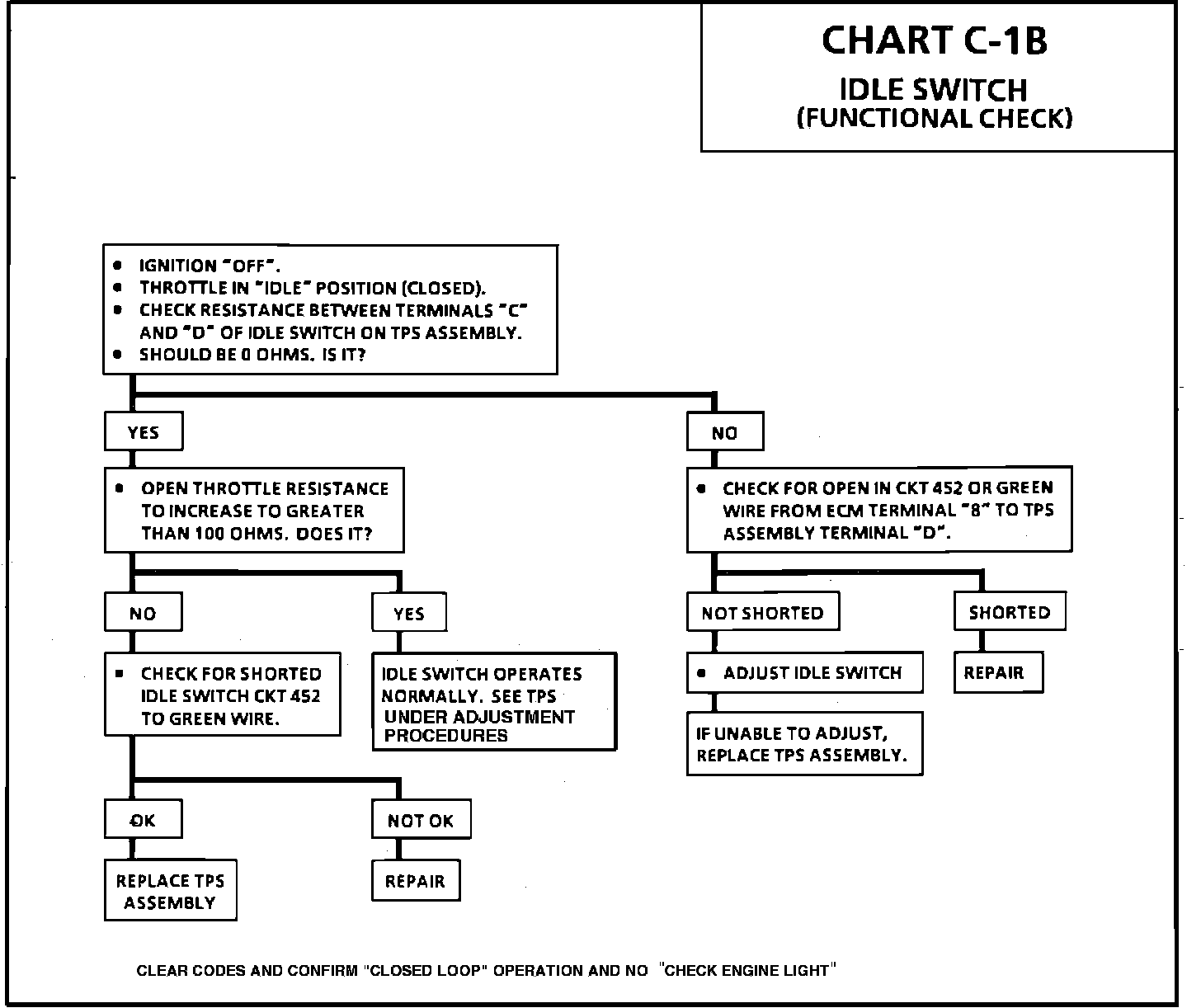

Chart C-1B:

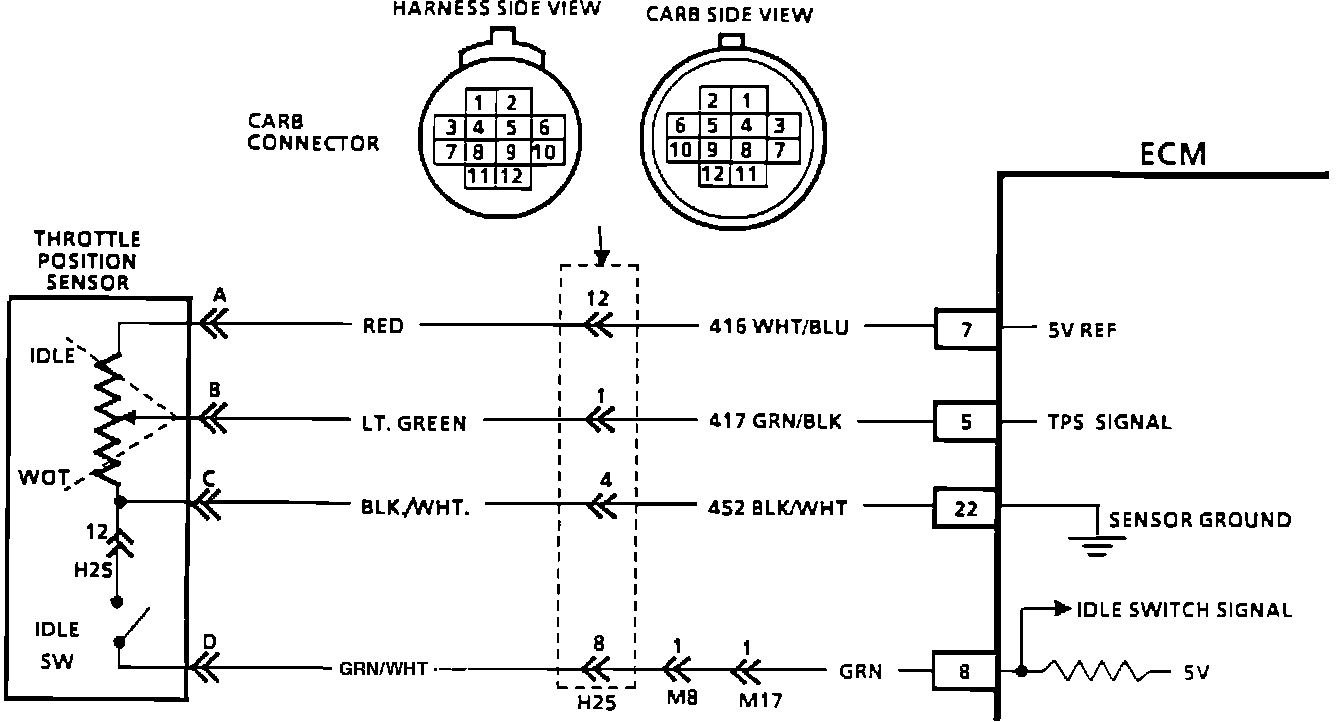

Chart C-1A/B Wiring Diagram:

DESCRIPTION

The idle switch provides the ECM with information used to decide closed loop operation and indicates the off-idle condition to the ECM. This switch is normally closed at idle and opens above 1800 rpm, which is then the off-idle condition.
