Compressor Oil

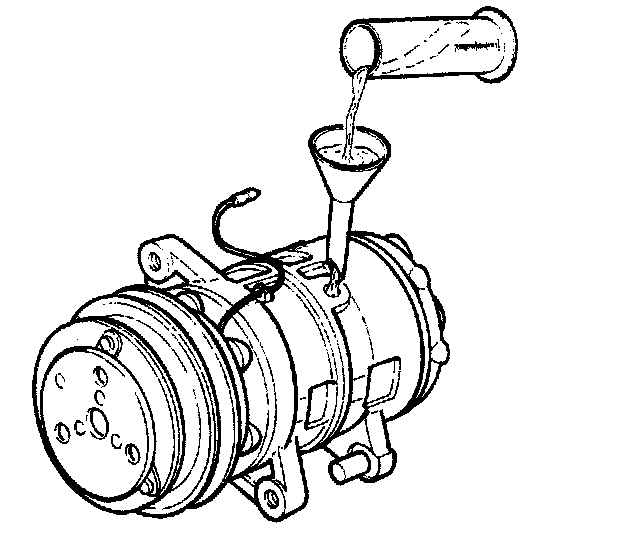

Adding Oil:

When replacing system component parts, supply the following amount of oil to the component parts to be mounted..

Oil Distribution

Component Parts to be mounted Amount of Oil

^ Evaporator 30 cc (1.01 fl. oz.)

^ Condenser 20cc (0.67 fl. oz.)

^ Accumulator/Dehydrator 20cc (0.67 fl. oz.)

Refrigeration oil must be replenished (60cc or 2.02 fl. oz.) if more than two parts are removed at the same time. After installing these components, check compressor oil.
