Ignition Coil

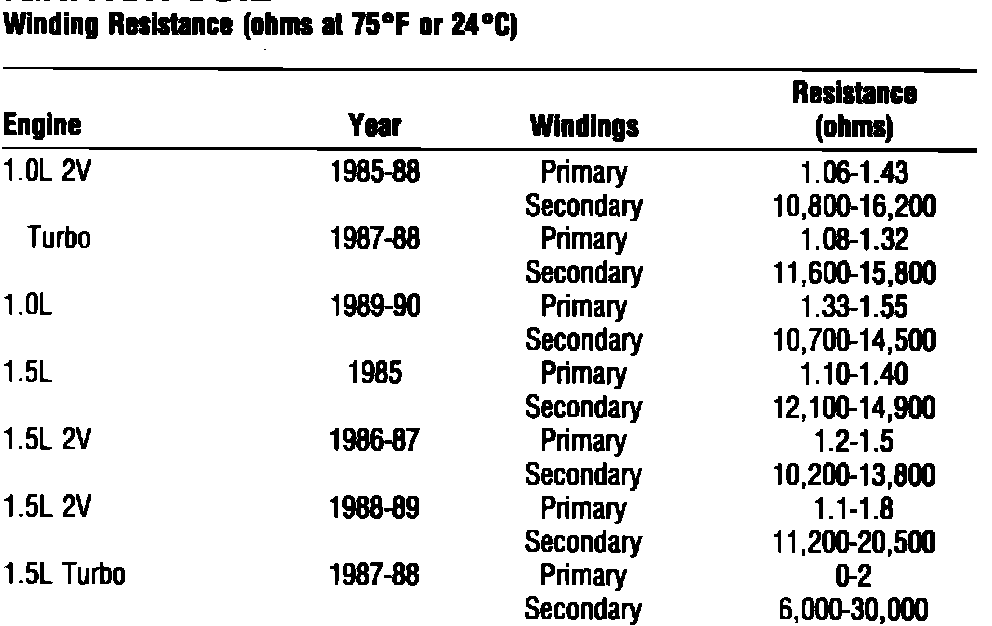

IGNITION COIL SPECIFICATIONS:







Primary Coil Resistance 1.1 ohms to 1.8 ohms

Secondary Coil Resistance 11.2 K ohms to 20.5 K ohms
