Choke Unloader

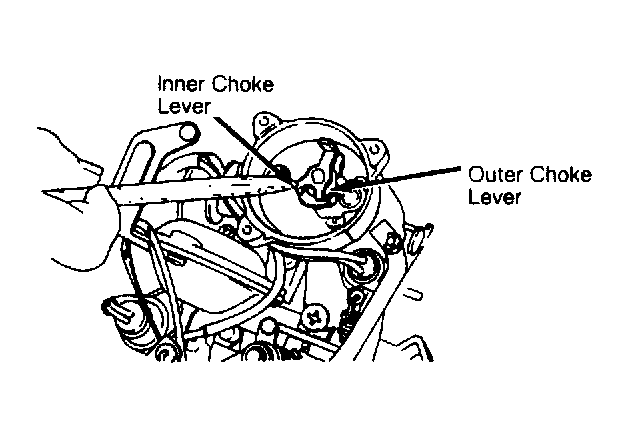

Fully open primary throttle valve. Measure clearance between choke valve and bore. Clearance should be .071" (1.80 mm). For adjustment, remove rivet from choke cover. Adjust by bending outer choke lever in housing. See Figure . Install choke cover.
