Steering Column: Description

Columns are energy absorbing/collapsible design. Components include upper and lower column sections, steering shaft and universal joints which connect column and steering box or rack. Some models have adjustable columns.

Fig 1: Metro Steering Column Assembly

Courtesy of GENERAL MOTORS CORP.

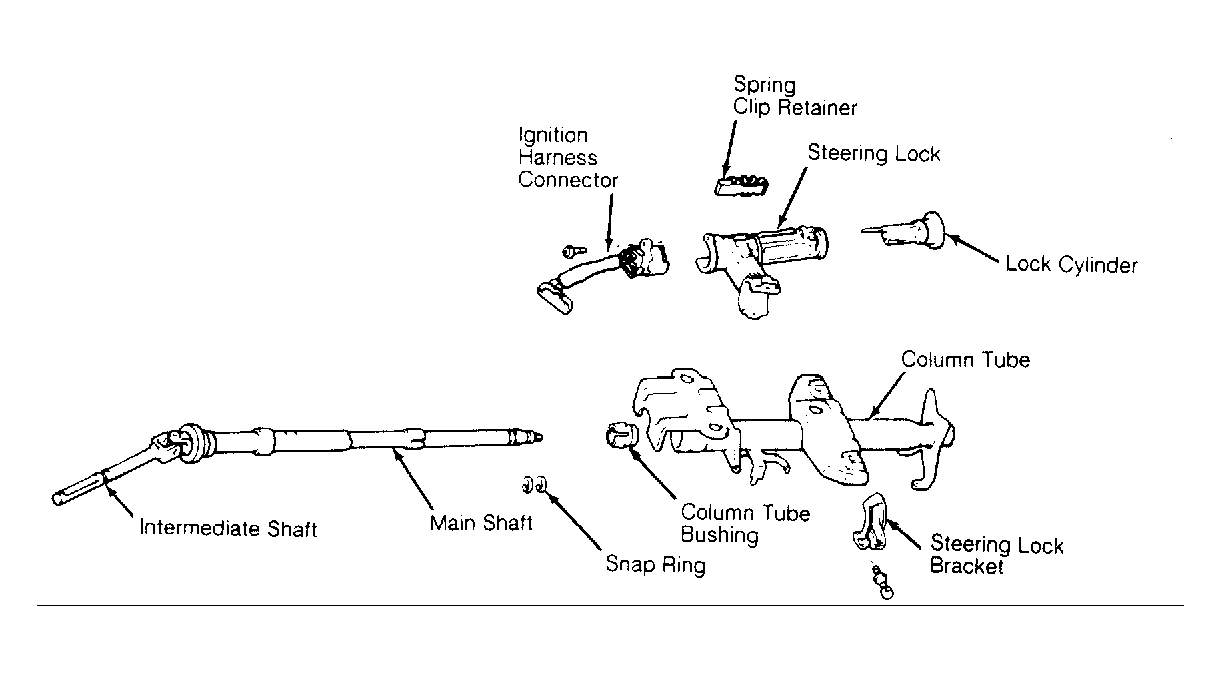

Fig 2: Prizm Non-Tilt Steering Column Assembly

Courtesy of GENERAL MOTORS CORP.
