Alignment Specifications
WHEEL ALIGNMENT SPECIFICATIONS (METRO)
| Application |
Specification: Fraction (Decimal) |

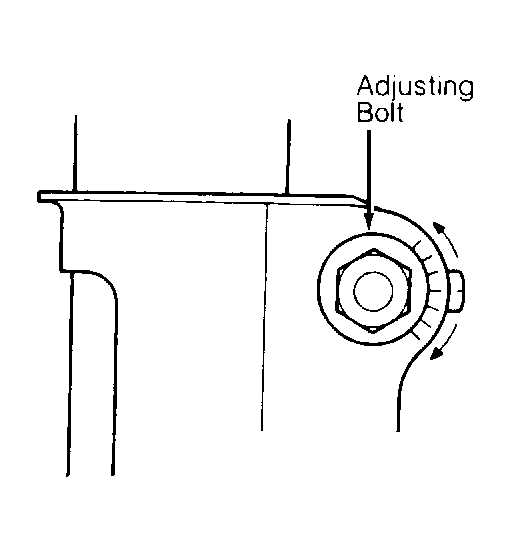

| Camber (Degrees) |
| Front |
0 +/- 1 (0 +/- 1.0) |
| Rear |
0 (0) |

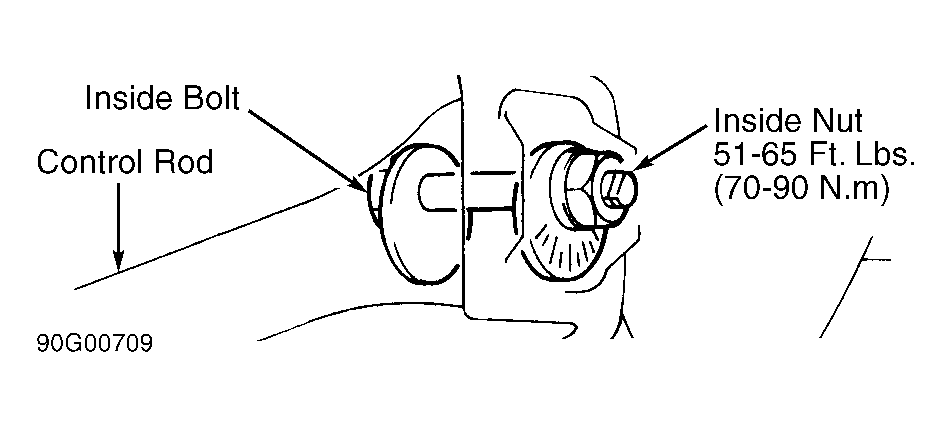

| Caster (Degrees) |
3 +/- 2 (3 +/- 2.0) |
| Toe-In (Inches) |
| Front |
0 +/- 5/64 (0 +/- .079) |
| Rear |
5/64 +/- 5/64 (.079 +/- .079) |
| Toe-In (Degrees) |
N/A |
| Toe-Out On Turns (Degrees) |
| Inner |
38 |
| Outer |
32 |
| Steering Axis |
| Inclination (SAI) - (Degrees) |
N/A |
WHEEL ALIGNMENT SPECIFICATIONS (PRIZM)
| Application |
Specification: Fraction (Decimal) |
| Camber (Degrees) |
| Front |
| Automatic |
11/64 +/- 3/4 (.17 +/- .75) |
| Manual |
(.25 +/- .75) |
| Rear |
| Automatic |
37/64 +/- 3/4 (.58 +/- .75) |
| Manual |
(.67 +/- .75) |
| Caster (Degrees) |
| Automatic |
1 27/64 +/- 3/4 (1.42 +/- .75) |
| Manual |
(1.33 +/- .75) |
| Toe-In (Inches) |
| Front |
1/32 +/- 5/32 (.039 +/- .157) |
| Rear |
5/32 +/- 5/32 |
| Toe-In (Degrees) |
N/A |
| Toe-Out On Turns (Degrees) |
N/A |
| Steering Axis |
| Inclination (SAI) - (Degrees) |
N/A |
WHEEL ALIGNMENT SPECIFICATIONS (SPECTRUM)
| Application |
Specification: Fraction (Decimal) |
| Camber (Degrees) |
| Front |
5/16 +/- 1 (.31 +/- 1.0) |
| Rear |
0 +/- 3/4 (0 +/- .75) |
| Caster (Degrees) |
2 1/4 +/- 1/2 (2.25 +/- .50) |
| Toe-In (Inches) |
N/A |
| Toe-In (Degrees) |
| Front |
0 +/- 1/3 (0 +/- .34) |
| Rear |
7/8 +/- 7/8 (.43 +/- .43) |
| Toe-Out On Turns (Degrees) |
| Without Power Steering |
| Inner |
40° |
| Outer |
33° |
| With Power Steering |
| Inner |
39° |
| Outer |
32.5° |
| Steering Axis |
| Inclination (SAI) - (Degrees) |
N/A |
WHEEL ALIGNMENT SPECIFICATIONS (TRACKER)
| Application |
Specification: Fraction (Decimal) |
| Camber (Degrees) |
1/3 +/- 1 (.30 +/- 1.0) |
| Caster (Degrees) |
1 1/3 +/- 1 (1.30 +/- 1.0) |
| Toe-In (Inches) |
15/64 +/- 5/64 (.16 +/- .08) |
| Toe-In (Degrees) |
N/A |
| Toe-Out On Turns (Degrees) |
| Inner |
32.5° |
| Outer |
30.5° |
| Steering Axis |
| Inclination (SAI) - (Degrees) |
N/A |
Courtesy of GENERAL MOTORS CORP.
