Diagnostic Aids

Improper fuel system pressure can result in one of the following symptoms: cranks but won't run, cuts out like ignition problem, poor fuel economy, loss of power or hesitation.

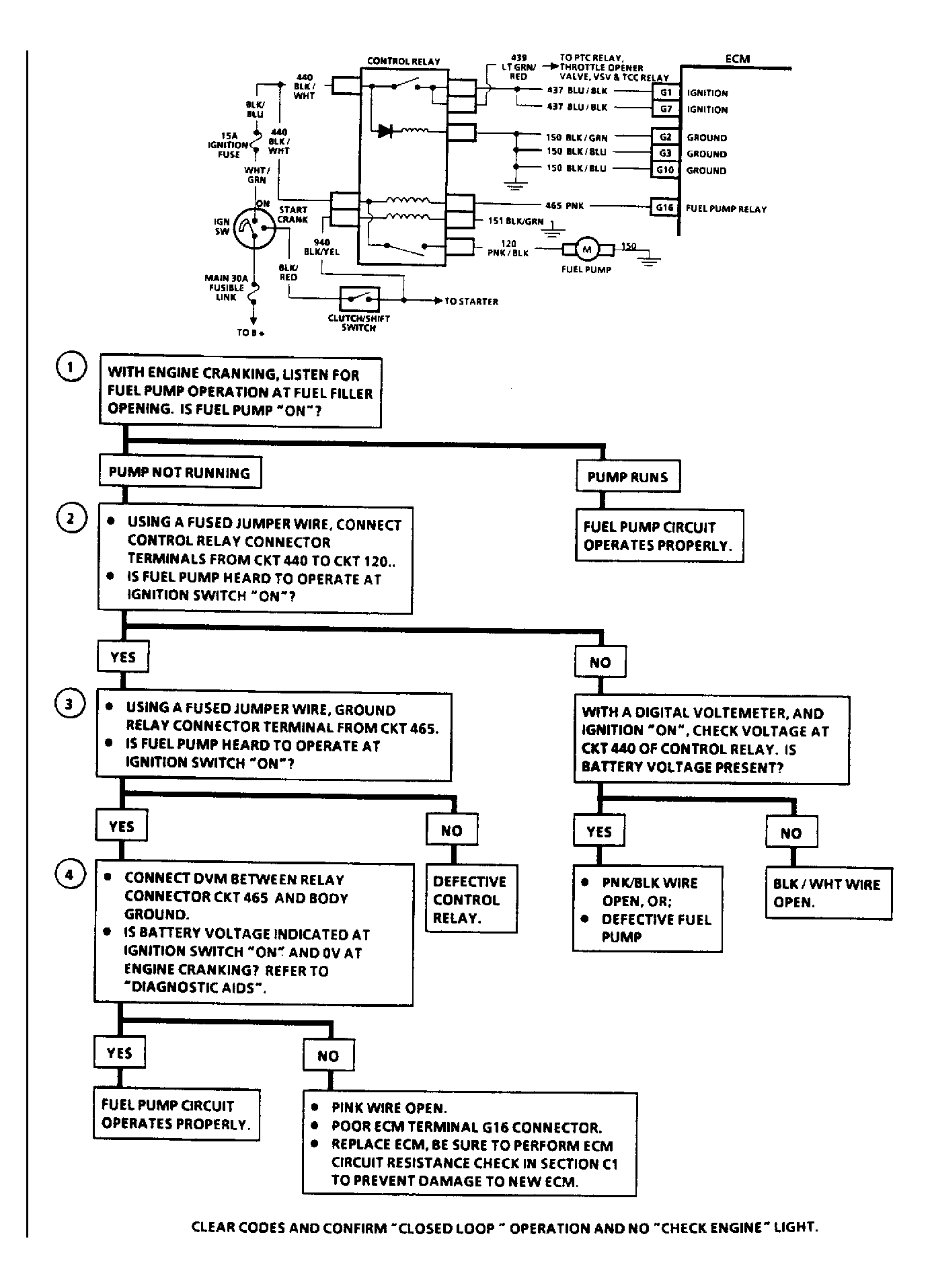

Fig 1: Chart A-7A, Circuit Wiring Diagram & Flow Chart
G121686Courtesy of GENERAL MOTORS CORP.
