Main Fuse Block INDENTIFICATION (1996): Notes

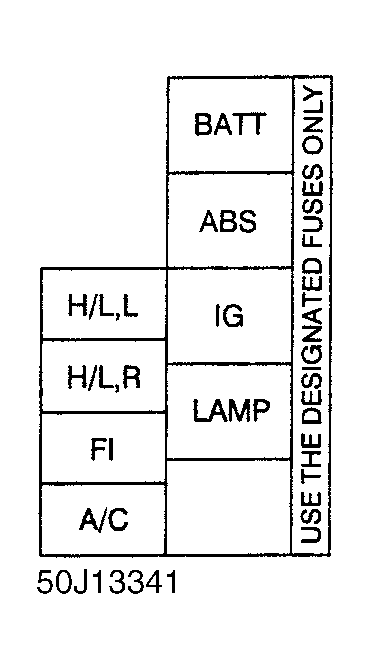

Fig 1: Main Fuse Block Identification (1996)
Courtesy of GENERAL MOTORS CORP.
WARNING:
Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
