Front Toe Adjustment

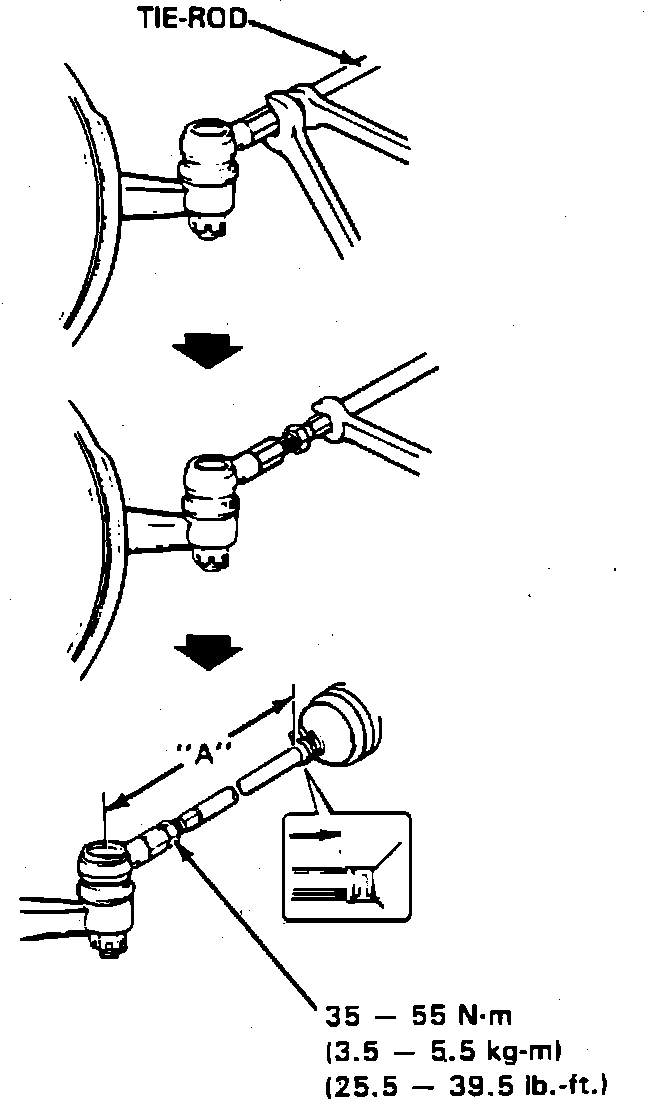

Fig. 2 Front Wheel Toe Adjustment:

1. Loosen right and left tie rod end locknuts, Fig. 2.
2. Apply grease between tie rods and rack boots.
3. Turn right and left tie rods by the same amount to align toe to specification. Right and left tie rods should become equal in length.
4. After adjustment, tighten locknuts and ensure rack boots are not twisted.
