Rear Toe Adjustment

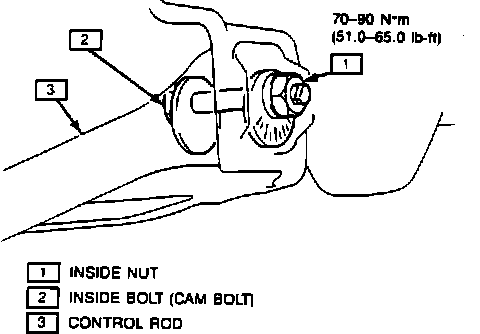

Fig. 3 Rear Wheel Toe Adjustment:

The rear wheel toe is adjusted by the inner control arm cam bolt, Fig. 3. If toe is found to out of specification, loosen left and right inner control arm cam bolt nuts, then rotate cam bolts by equal amounts to correct toe setting. After completing adjustment, torque cam bolt nuts to 51 to 65 ft. lbs.
